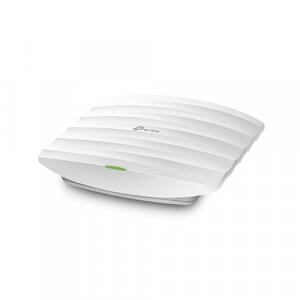

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK EAP265 HD
- Fast Dual-Band Wi-Fi: Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.
Đặc tính kỹ thuật
| Model | EAP265 HD |
| HARDWARE FEATURES EAP265 HD | |

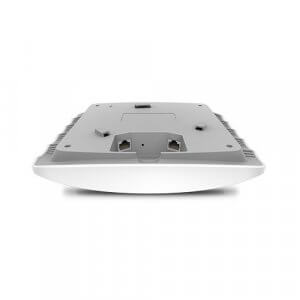

| Interface | 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (206 × 182 × 37 mm) |
| Antenna Type | Internal Omni – 2.4 GHz: 3× 3.5 dBi – 5 GHz: 3× 4 dBi |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES EAP265 HD | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | – 5GHz: Up to 1300 Mbps – 2.4GHz: Up to 450 Mbps |
| Wireless Functions | – Multiple SSIDs (Up to 16 SSIDs, 8 for each band) – Enable/Disable Wireless Radio – Automatic Channel Assignment – Transmit Power Control (Adjust Transmit Power on dBm) – QoS(WMM) – MU-MIMO – Seamless Roaming – Band Steering – Load Balance – Airtime Fairness – Beamforming – Rate Limit – Reboot Schedule – Wireless Schedule – Wireless Statistics based on SSID/AP/Client |
| Wireless Security | – Captive Portal Authentication – Access Control – Wireless Mac Address Filtering – Wireless Isolation Between Clients – SSID to VLAN Mapping – Rogue AP Detection – 802.1X Support – 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | 2.4GHz: 24 dBm max. 5GHz: 24 dBm max. |
| MANAGEMENT EAP265 HD | |
| Omada App | Yes |
| Centralized Management | – Omada Cloud-Based Controller – Omada Hardware Controller (OC300) – Omada Hardware Controller (OC200) – Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | – AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD – Gigabit Passive PoE Adapter – Power Cord – Mounting Kits – Installation Guide |
| Environment | – Operating Temperature: 0–40 ℃ (32–104 ℉) – Storage Temperature: -40–70 ℃ (-40–158 ℉) – Operating Humidity: 10–90% RH non-condensing – Storage Humidity: 5–90% RH non-condensing |
- Bảo hành 12 tháng.
Để cập nhật thông tin giá Thiêt Bị Mạng Tp-Link mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 hoặc Fanpage để được hỗ trợ tốt nhất.
