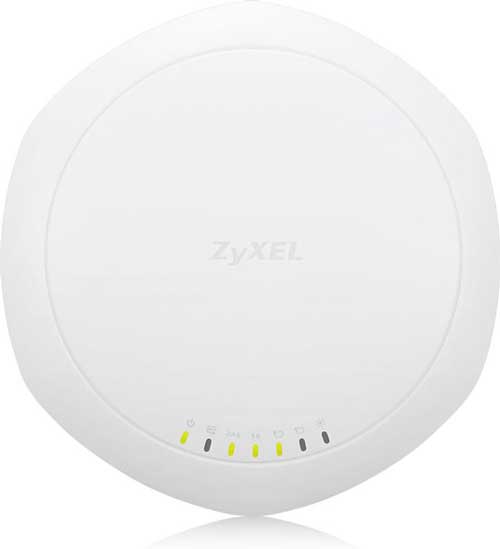

Nebula Cloud Networking Access Points Zyxel NAP203.
| Model | NAP203 |
| RF Specifications | |
| Antenna system | Dual-optimized internal antenna |
| Antenna gain | Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi |
| Support data rate | • 802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps • 802.11n: up to 450 Mbps in MCS23 (40 MHz) • 802.11ac: up to 1300 Mbps in MCS9 (80 MHz) |
| Receive sensitivity | Min. Rx sensitivity up to to -102 dBm |
| Interfaces | |
| Number of 10/100/1000M LAN | 2 |
| Console port | 4-Pin serial |
| PoE | Yes |
| PoE power draw | 12.48 W (802.3at PoE)* |
| WLAN Features | |
| Smart mesh | Yes |
| Mesh AP for multiple SSID with VLAN | Yes |
| Fast Roaming | Pre-authentication, PMK caching and 802.11 r/k/v |
| Wireless Security | |
| WPA2-PSK | Yes |
| WPA2-Enterprise | Yes |
| WLAN access control list | Yes |
| EAP types | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM |
| IEEE 802.1X | Yes |
| Wireless Security | |
| Number of SSID | 8 (per radio) |
| MAC filtering | Yes |
| Layer-2 isolation | Yes |
| RADIUS authentication | Yes |
| Captive portal | Yes |
| Network | |
| VLANs | Yes |
| DHCP client | Yes |
| QoS (PG) | |
| WMM | Yes |
| WMM power save | Yes |
| DiffServ marking | Yes |
| Management | |
| Cloud managed | Yes |
| ZON utility | Support |
| Smart connect | Neighbor device discovery |
| Others | |
| Plenum rating | Yes |
| Input power | 802.3at PoE only (No DC jack) |
| MTBF (hr) | 1,005,235 |
| Physical Specifications NAP203 | |
| Item | Dimensions (WxDxH)(mm/in.) 203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37 Weight (g/lb.) 445/0.98 |
| Packing | Dimensions (WxDxH)(mm/in.) 235 x 246 x 60/9.25 x 9.69 x 2.36 Weight (g/lb.) 938/2.07 |
| Included accessories | Wall/Ceiling-mount plate |
| Environmental Specifications | |
| Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
Để cập nhật thông tin giá Thiết bị mạng ZYXEL mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
