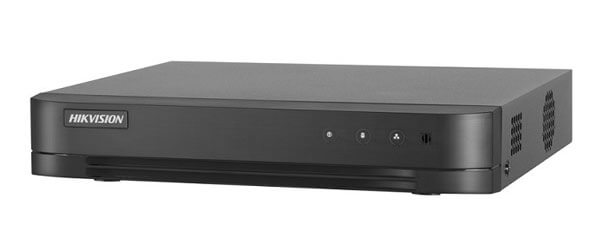

Đầu ghi hình 5 in 1 16 kênh HIKVISION DS-7216HGHI-K1(S).
- Model: DS-7216HGHI-K1(S)
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Support 2-ch (up to 18-ch) camera IP input, up to 5 MP
- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
Đặc tính kỹ thuật
| Model | DS-7216HGHI-K1(S) |
| Video/Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | BNC interface (1.0Vp-p, 75 Ω) connection |
| Supported camera types | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
| IP Video Input | 2-ch (up to 18-ch);Up to 5 MP resolution; Support H.265+/ H.265/ H.264+/ H.264 IP |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Video/Audio Output DS-7216HGHI-K1(S) | |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | 1080p/720p/VGA/WD1/4CIF/CIF |
| Audio Output | 1-ch RCA (Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| Network management DS-7216HGHI-K1(S) | |
| Remote connections | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10 TB capacity for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M adaptive Ethernet Interface |
| USB | 2 USB 2.0 |
| Serial | 1; standard RS-485 serial interface, half-duplex |
| General | |
| Power Supply | 12 VDC |
| Working Temperature | -10ºC to +55ºC |
| Working Humidity | 10% to 90% |
| Dimensions | 260 × 222 × 45 mm |
| Weight | ≤ 1.1 kg |
- Bảo hành: 24 tháng
Để cập nhật thông tin giá Đầu Ghi Hình HD-TVI HIKVISION mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
