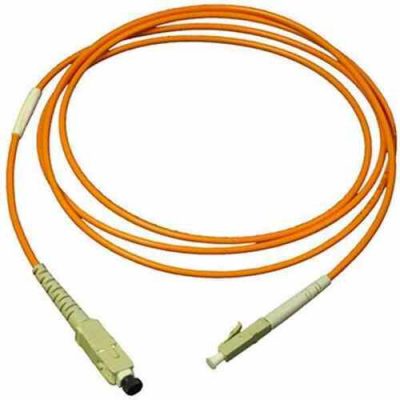

Fiber pigtail SC Multi-mode OM2 50/125µm DINTEK 1m 2105-02013

Fiber pigtail SC Multi-mode OM2 50/125µm DINTEK 1m 2105-02013:

Part number: 2105-02013

Light-LINKS – OM2 Fiber Optic Pigtails – Multimode

DINTEK’s Light-LINKS^TM Multi & Single Mode Fiber optic pigtail assemblies are used when termination is required to be made onto incoming fiber optic cables either through fusion or mechanical splicing. DINTEK’s Light-LINKS^TM pigtails are high-quality and are combined with correct fusion splicing practices which offers the best performance possible for fiber optic cable terminations. DINTEK manufactures a wide range of factory terminated and tested fiber optic pigtail assemblies. These assemblies are available in various fiber types, fiber/cable constructions and connector options. Factory-based assembly and machine connector polishing ensure excellence in performance, interconnectability and durability. All pigtails are 100% tested using standards-based testing procedures.

Features

• Connector types LC/SC/ST/FC/MTRJ, 9/125um / 50/125um
• 100% end face inspected, compliance with GR-326-CORE
• High-quality, machine polished connectors for consistent low loss performance
• Flexible and easy to strip fiber buffer
• Short buffer style connector boots for ease of fiber management in high density applications

Standards Compliance

• Standards ISO/IEC 11801 / Cenelec EN 50173-1 / TIA-568 C.0
• Data Center Cenelec EN 50173-5 / ISO/IEC 24764/ TIA-942
• Ethernet IEEE 802.3; 10/40/100GbE Exceed return loss & geometry requirements of GR-326-CORE
• All visual endface conditions exceed requirements of IEC 61300-3-35 and AS/NZS ISO/IEC 14763.3
• All test cords used for connector lL and RL testing are minimum ‘reference grade’ performance as per AS/NZS ISO/IEC 14763.3 specifications

Applications

• Temporary termination of optical fiber cable
• Termination of optical fiber by mechanical splicing method
• Termination of optical fiber by fusion splicing method

Technical Properties

• Connector type: ST / SC / LC / FC
• Insertion Loss: Multimode: ≤ 0.30dB maximum
• Return Loss Multimode: PC ≥ 50dB
• Operating Temperature: -40 to +85°C

Made in Taiwan
