Hộp phối quang ODF 12 port Dintek 2202-12007:
Part number: 2202-12007
- Hộp phối quang ODF 12 port.
- Loại gắn tường.
- Panel ST/SC/FC.
- Hộp kim loại màu đen.
- Hộp phối quang gắn tường ODF 12 port là giải pháp kinh tế và chất lượng cho việc lắp đặt ở bất kỳ vị trí nào cần kết nối trực tiếp hoặc kết nối pigtail.

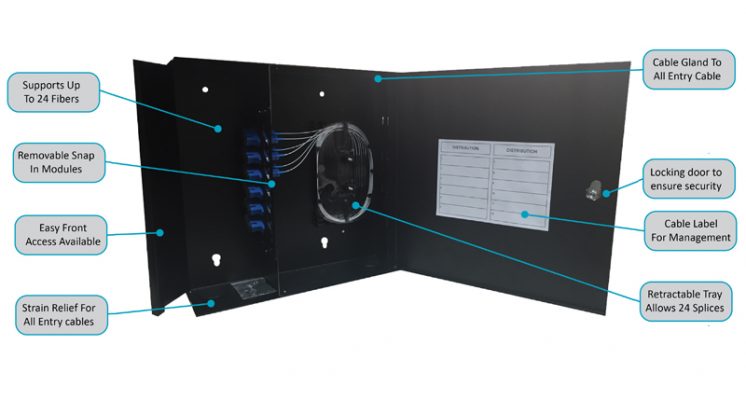

Wall Mount Fiber Optic Enclosure – 1 x SC Plate
DINTEK Light-LINKSTM wall mounted fiber optic splice and termination enclosures provide an economical and quality solution for installations of any size, where direct termination or pigtail splicing is required.
The typical use of these enclosures include situations where outside plant cables are terminated onto the back of the adapter plate or where pigtails are spliced onto the incoming cable. These enclosures are also used as point to point patch connections or as end termination for backbone spurs in the Telecom environment.
The Light-LINKSTM wall mounted fiber optic enclosure range comes in L*W*D: 290*255*60mm dimension. The units can be purchased with adapter plate configurations being either SC or ST.
Features
- Designed for fiber optical backbone cabling applications
- Snap-in adapter plates and removable cover provides for easy access and installation
- Contains splice tray
- Easily added to existing multimedia installations that will require fiber terminations
- Splice tray, sleeves and SC/ST adapters are available separately to load into the enclosure (optional)
- Accepts up to 1 x 6 port duplex SC adapter plate
- Material: Iron – Powder Coated Black
- Dimensions: 290*255*60mm
- Weight: 2.0kg
Made in Taiwan
