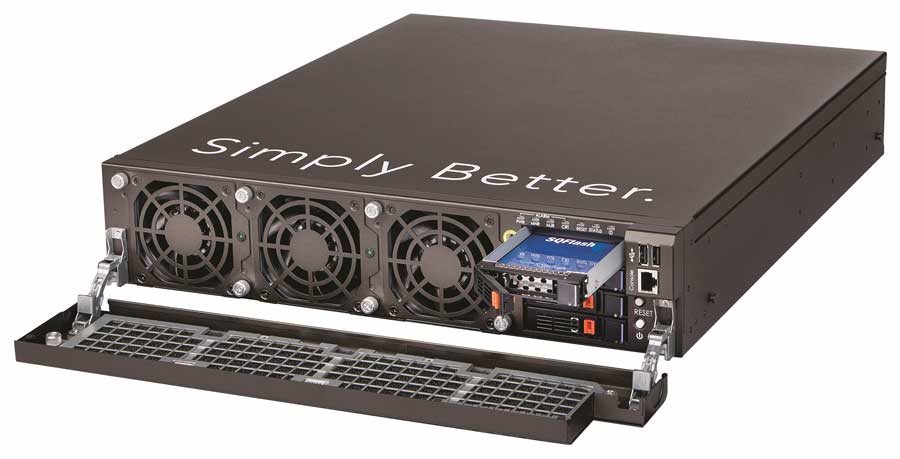

Bộ điều khiển WiFi RUCKUS SmartZone 300.
| CAPACITY SmartZone 300 | |
| Managed APs | • Up to 10,000 per controller • Up to 30,000 per cluster |
| Managed Switches | • Up to 500 per controller • Up to 1,500 per cluster |
| WLANs (BSSIDs) | Up to 6,144 |
| Concurrent Devices | • Up to 100,000 per vSZ-H • Up to 300,000 per vSZ-H cluster • Up to 150,000 per SZ300 • Up to 450,000 per SZ300 cluster |
| KEY FUNCTIONALITY SmartZone 300 | |
| Device Management | • Ruckus Wi-Fi APs supported: R720, R710, R700, R610, R600, R510, R500, R310, H510 H320, C110, E510, T811CM, T710, T710S, T610, T610S, T504 T310, T301, T300, FZM300, FZP300 • Ruckus ICX 7000 series switches running FastIron 8.0.80 and above supported (ICX 7150, ICX 7250, ICX 7450, ICX 7650, ICX 7750) |
| Device Type Support | Wi-Fi APs, Switches |
| Controller Expansion | Up to 4 controllers in N+1 active-active mode, supporting non-disruptive capacity expansion |
| Controller Redundancy | 3+1 distributed data preserving with N+1 redundancy within a cluster |
| Cluster Redundancy | Geo-redundancy between clusters; many-to-one cluster support |
| Data Offload | Local offload of traffic directly to the Internet |
| AP | • Internal database up to 25,000 users • External: RADIUS, LDAP, Active Directory |
| Access Control | • L2 (MAC address-based) • L3/4 (IP and Protocol based) • L2 client isolation • Management interface access control • Time-based WLANs • Device type access policies • Two-factor authentication password, SMS |
| Wireless Intrusion Detection (WIDS/WIPS) | • Rogue AP detection / prevention • Evil-twin/AP spoofing detection • Ad hoc detection |
| AAA | RADIUS (primary and backup) |
| Hotspot | WISPr, Wi-Fi CERTIFIED, Passpoint™, HotSpot 2.0 |
| Guest Access | Supported |
| Captive Portal | Supported |
| Mesh | Self-healing, Self-forming, Zero-touch provisioning |
| DHCP Server | Up to 100,000 IP address leases per vSZ-D (in increments of 1,000 IP address leases) |
| NAT | Up to 2 million sessions flows per vSZ-D (in increments of 100,000 session flows) |
| Media | 802.11e/WMM, U-APSD, Wi-Fi Calling Prioritization |
| mDNS Bonjour Fencing | Supported |
| WISPr | WISPr authentication, SZ downlink AP Survivability |
| Software Queues | Per traffic type (4), per client |
| SmartCast Traffic Classification | Automatic, heuristics and TOS based or VLAN-defined |
| Rate Limiting | Supported |
| WLAN Prioritization | Supported |
| Client Load Balancing | Automatic |
| Band Load Balancingt | Supported |
| AP Provisioning | • L3 or L2 auto-discovery • Auto-software upgrade • Automatic channel optimization |
| Configuration Management | • Secure multi-operator login (RBAC) • Large scale (bulk) AP management tools • Switch software and firmware upgrades • Switch configuration management to be supported in an upcoming SmartZone release • Per zone firmware versioning control • Configuration audit trails • Alarm and event notification (SNMP V1 / V2 / V3) • Event Logging (Syslog) • Integrated on-board remote accessible EMS functionality • RESTful APIs (JSON) • Web-UI • CLI |
| PHYSICAL CHARACTERISTICS SmartZone 300 | |
| Hypervisor Support for VSZ | VMware 6.5, KVM CentOS 7.3 and above, Hyper-V Windows 2012 R2 and above, AWS, Azure, GCE |
| Power | • Dual (redundant) DC hot-swappable power supplies • DC power consumption: 1400W • Power Rating: -36 to -72VDC • Power Rating: 100-127VAC/200-240VAC, 47-63HZ |
| Dimensions | 2RU rack mountable: 430 mm (W) x 518 mm (D) x 88.6 mm (H); 16.93 in (W) x 20.4 in (D) x 3.48 in (H) |
| Weight | 24.3 kg; 53.6 lbs |
| Connections | • Control, management, cluster ports • Six 10/100/1000 Mbps, RJ-45 ports • Data: Four 10Gbps data ports (SFP+) • Console ports: two RJ-45, one front, one rear • USB ports: two front, two rear • Serial port |
| LED | Front panel LEDs, one rear LED |
| Fans | Six redundant, field-swappable fans in three sets |
| Environmental Conditions | • Operating Temperature: 5°C (41°F) – 55°C (131°F) • Operating Humidity: 5% to 85%, non-condensing • Humidity storage: 95%, non-condensing |
| REGULATORY/CERTIFICATIONS SmartZone 300 | |
| EMC | • FCC/ICES-003-Emissions (USA/Canada) • CISPR 22-Emissions (International) • EN55022-Emissions (Europe) • EN55024-Immunity (Europe) • EN61000-3-2-Harmonics (Europe) • EN61000-3-3-Voltage flicker (Europe) • CE-EMC Directive 89/336/EEC (Europe) • VCCI Emissions (Japan) • AS/NZS: CISPR 22 Emissions (Australia/New Zealand) • BSMI CNS13438 (Taiwan) • CCC Certification (China) |
| Safety | • UL60950-1/CSA 60950-1 (USA/Canada) • EN60950-1 (Europe) • IEC60950-1 (International), CB Certificate & Report including all international deviations • CE-Low Voltage Directive 73/23/EEE (Europe) • CCC Certification (China) |
| Miscellaneous | NEBS level 3 design |
