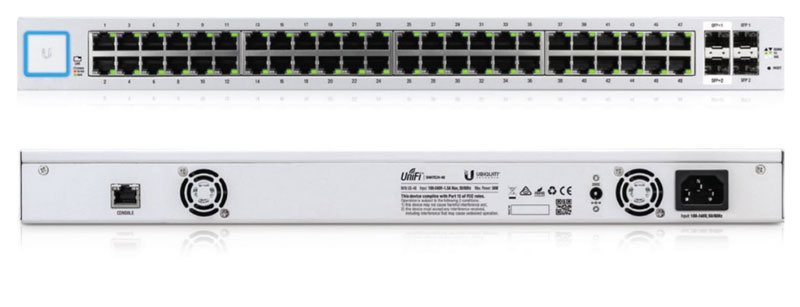

48-Port with SFP Gigabit Managed Switch Ubiquiti UniFi US-48
- US-48 The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‐blocking throughput, the 48-port model supports up to 70 Gbps.
- Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
- US-48 – 48 Gigabit RJ45 Ports.
- 2 SFP+ Ports.
- 2 SFP Ports.
- 1 Serial Console Port.
- Non-Blocking Throughput: 70 Gbps.
- Switching Capacity: 140 Gbps.
- Forwarding Rate: 104.16 Mpps.
- Maximum Power Consumption: 56W.
- Rack-Mountable.
Đặc tính kỹ thuật
| Dimensions | 443 x 43 x 286 mm (17.44 x 1.69 x 11.26inch) |
| Weight | Rack-Mount Brackets Excluded: 3.56 kg (7.85 lb) Rack-Mount Brackets Included: 3.65 kg (8.06 lb) |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 56W DC |
| Max. Power Consumption | 56W |
| LEDs per Port | Speed/Link/Activity |
| Sound Level | Fan Level: 0: 0.7 dBr Fan Level: 1: 13.5 dBr |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Rack Mount | Yes, 1U High |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
- Thương hiệu Ubiquiti của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
Để cập nhật thông tin giá thiết bị mạng Unifi mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 hoặc Fanpage để được hỗ trợ tốt nhất.
