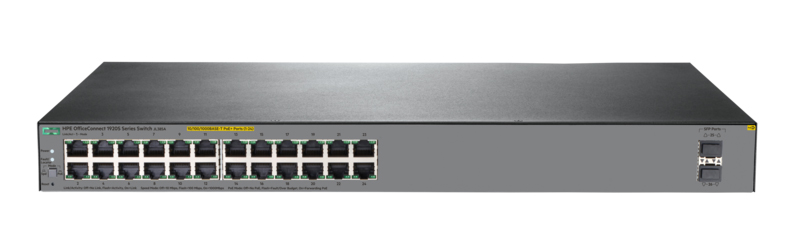

Switch HPE 24 Ports OfficeConnect 1920S 24G 2SFP PoE+ 370W JL385A
| I/O ports and slots JL385A | 24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) |
| Additional ports and slots | 2 SFP 100/1000 Mbps ports |
| Physical characteristics | Dimensions: 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)
Weight: 9.7 lb (4.4 kg) |
| Memory and processor | ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB |
| Mounting and enclosure | |
| Performance | 100 Mb Latency < 7.0 µs 1000 Mb Latency < 2.0 µs ThrougHPEut 77.3 Mpps Switching capacity: 52 Gbps MAC address table size: 16,000 entries |
| Environment | Operating temperature: 32°F to 104°F (0°C to 40°C) Operating relative humidity: 5% to 95%, noncondensing Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity:15% to 95% @ 140°F (60°C) Altitude: up to 16,404 ft (5 km) Acoustic: No Fan |
| Electrical characteristics | Frequency: 50/60 Hz Voltage: 100 – 240 VAC, rated Maximum power rating: 435 W Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated |
| Safety JL385A | UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 |
| Emissions | VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32 |
| Device Management | Web browser |
Các module quang dùng cho Switch HPE OfficeConnect JL385A 1920S
| J9054D | Aruba 100M SFP LC FX 2km MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4858D | Aruba 1G SFP LC SX 500m OM2 MMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
- Bảo hành: 12 tháng.
Để cập nhật thông tin giá Thiết bị mạng HP mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 hoặc Fanpage để được hỗ trợ tốt nhất.
