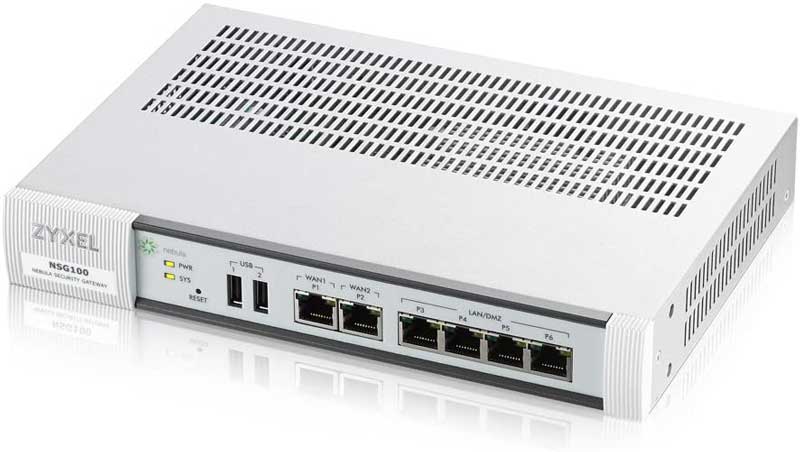

ZYXEL NSG100 Nebula Cloud Managed Security Gateway.
Model | NSG100 |
Hardware Specifications | |
CPU | Multi-core |
Memory | 1GB |
10/100/1000 Mbps RJ-45 ports | 4 x LAN (GbE) 2 x WAN (GbE) |
Port grouping | Yes |
USB ports | 2 |
Console port | Yes (DB9) |
Rack-mountable | Yes |
Wall-mountable | No |
Fanless | Yes |
System Capacity & Performance | |
SPI firewall throughput (Mbps) | 450 |
VPN throughput (Mbps) | 150 |
IDP throughput (Mbps) | 160 |
AV throughput (Mbps) | 90 |
SP throughput (Mbps, AV and IDP) | 90 |
Unlimited user | Yes |
Max. TCP concurrent sessions | 40,000 |
Max. TCP session rate | 2,000 |
Max. concurrent IPsec VPN tunnels | 40 |
VLAN interface | 16 |
Key Software Features | |
Firewall | Yes |
Virtual Private Network (VPN) | Yes (IPSec, L2TP over IPSec) |
Bandwidth management | Yes |
Logging and Monitoring | Yes |
Unified Security Policy | Yes |
Intrusion Detection and Prevention (IDP) | Yes |
Application Patrol | Yes |
Content Filtering | Yes |
Anti-Virus | Yes |
WAN Failover | Yes |
Power Requirements | |
Power input | 12 V DC, 2.5 A max. |
Max. power consumption (watts) | 19 |
Heat dissipation (BTU/hr) | 64.83 |
Physical Specifications | |
Item Dimensions (WxDxH)(mm/in.) | 242 x 175.5 x 35.5/9.53 x 6.91 x 1.40 |
Weight (kg/lb.) | 1.25/2.76 |
Packing Dimensions (WxDxH)(mm/in.) | 394 x 240 x 101/15.51 x 9.45 x 3.98 |
Weight (kg/lb.) | 2.25/4.96 |
Included accessories | • Power adapter • Rack mounting kit |
Environmental Specifications | |
Operating Temperature | 0°C to 40°C/32°F to 104°F |
Humidity | 10% to 90% (non-condensing) |
Storage Temperature | -30°C to 70°C/-22°F to 158°F |
Humidity | 10% to 90% (non-condensing) |
MTBF (hr) | 815,463.90 |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
Để cập nhật thông tin giá Thiết bị mạng ZYXEL mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
