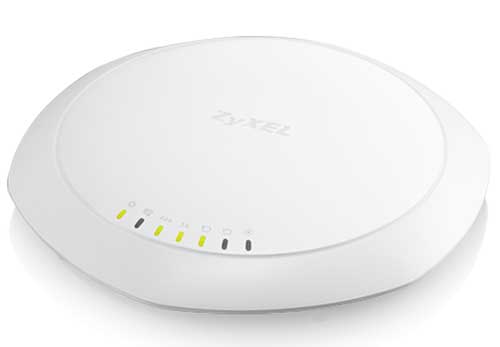

Ultra-fast, Ultra-slim 802.11ac Wi-Fi Access Point Zyxel WAC6103D-I.
Model | WAC6103D-I |
Interfaces | |
Number of 10/100/1000M LAN | 2 x switch ports |
Console port | 4-Pin serial |
PoE | Yes |
PoE power draw | 12.48 W (802.3at PoE) |
WLAN Features | |
WLAN maximum throughput | Up to 900 Mbps |
Mesh AP (By License)*2 | Yes |
Mesh AP for multiple SSID with VLAN*2 | Yes |
Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
Wireless Security | |
WEP | Yes |
WPA/WPA2-PSK | Yes |
WPA/WPA2-Enterprise | Yes |
WMM(WiFi certified) | Yes |
WLAN access control list | Yes |
EAP types | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM |
IEEE 802.1X | Yes |
Number of SSID | 16 |
Web authentication*2 | Yes |
MAC filtering | Yes |
Layer-2 isolation | Yes |
RADIUS authentication | Yes |
Microsoft AD authentication*2 | Yes |
LDAP authentication*2 | Yes |
MAC authentication*2 | Yes |
Rogue AP detection | Yes |
Rogue AP containment | Yes |
Network | |
IPv6 host | Yes |
VLANs | Yes |
DHCP client | Yes |
QoS | |
WMM | Yes |
WMM power save | Yes |
DiffServ marking | Yes |
Management WAC6103D-I | |
ZON Utility | Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration Device reboot Device reboot Firmware upgrade IP renew Device locating Device factory reset Device reboot Web GUI access One-click quick association with Zyxel AP Configurator (ZAC) |
Smart Connect | Neighbor device discovery One-click remote management access to the neighboring Zyxel devices |
Zyxel AP Configurator | Batch AP configuration Batch AP firmware upgrade Batch AP profile backup |
Zyxel Wireless Optimizer | WiFi AP planning WiFi coverage detection Wireless health management |
Standalone AP mode | Yes |
Managed AP mode | Yes |
CLI | Yes |
Web UI | Yes |
SNMP | v2c/v3 |
Others WAC6103D-I | |
Plenum rating | Yes |
WPA/WPA2-PSK | Yes |
Input power | 802.3at PoE only (No DC jack) |
MTBF (hr) | 1,005,235 |
Physical Specifications WAC6103D-I | |
Item | Dimensions (WxDxH)(mm/in.) 203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37 Weight (g/lb.) 445/0.98 |
Packing | Dimensions (WxDxH)(mm/in.) 235 x 246 x 60/9.25 x 9.69 x 2.36 Weight (g/lb.) 938/2.07 |
Included accessories | Wall/ceiling mount plate |
Environmental Specifications | |
Operating | Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) |
Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
