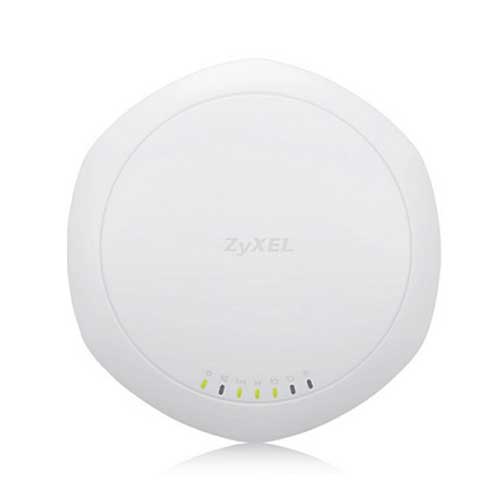

802.11ac Dual-Radio Dual Mount PoE Access Point ZyXEL NWA1123APRO.
| Model | NWA1123APRO |
| Main Design | |
| Wireless frequency | 2.4 GHz & 5 GHz |
| Radio | 2 |
| RF Specifications | |
| Frequency band | – 2.4 GHz (802.11 b/g/n) : 2.412 to 2.472 GHz – 5 GHz (802.11 a/n/ac): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| 802.11 premium features | – 3×3 Multiple-Input Multiple-Output (MIMO) with three spatial streams – Maximal Ratio Combining (MRC) – 20-, 40- and 80-MHz channels – PHY data rates total up to 450 Mbps (11n) + 1.3 Gbps (11ac) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – Cyclic Delay diversity (CSD) support – Maximum Likelihood Demodulation (MLD) support – Low Density Parity Check (LDPC) support |
| Conducted typical transmit output power | – 2.4 GHz: 18 dBm – 5 GHz: 24 dBm |
| Number of antenna | 3T3R MIMO |
| Support data rate | – 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps – 802.11n: up to 450 Mbps in MCS15 (40 MHz) – 802.11ac: up to 1300 Mbps in MCS9 (80 MHz) |
| RF Specifications | |
| Receive sensitivity | Min. Rx sensitivity to -102 dBm |
| LAN | |
| Number of 10/100/1000M LAN | 2 |
| PoE | Yes |
| PoE power draw | 12.48 W (802.3at PoE) |
| WLAN Features | |
| Smart mesh | Yes |
| Mesh AP for multiple SSID with VLAN | Yes |
| Fast Roaming | Pre-authentication, PMK caching and 802.11 r/k/v |
| DCS (Dynamic Channel Selection) | Yes |
| Load Balancing | Yes |
| WLAN Security NWA1123APRO | |
| WEP | Yes |
| WPA/WPA2-PSK | Yes |
| WPA/WPA2-Enterprise | Yes |
| EAP type | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM |
| WMM | WiFi compliant |
| IEEE 802.1X | Yes |
| Number of multiple SSID | 16 |
| MAC filtering | Yes |
| WLAN Security NWA1123APRO | |
| L2 isolation | Yes, multiple profile |
| RADIUS authentication | Yes |
| Network | |
| IPv6 support | Yes |
| VLANs | Yes |
| DHCP client | Yes |
| Zyxel One Network | |
| ZON Utility | – Discovery of Zyxel switches, APs and gateways – Centralized and batch configurations + IP configuration + IP renew + Device reboot + Device locating + Web GUI access + Firmware upgrade + Password configuration + One-click quick association with Zyxel AP Configurator (ZAC) |
| Management | |
| ZAC | – Batch AP configuration – Batch AP firmware upgrade – Batch AP profile backup |
| Standalone AP mode | Yes |
| CLI | Yes, SSH |
| SNMP | Yes |
| Others | |
| Plenum rating | Yes |
| Power supply | 802.3at PoE only (No DC jack) |
| MTBF (hr) | 1,005,235 |
| Standard Compliance NWA1123APRO | |
| Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.11ab, IEEE 802.3au, IEEE 802.3az, IEEE 802.3at |
| WLAN | – 802.11b: DBPSK, DQPSK, CCK – 802.11g: BPSK, QPSK, 16-QAM, 64-QAM – 802.11a: BPSK, QPSK, 16-QAM, 64-QAM – 802.11n: BPSK, QPSK, 16-QAM, 64-QAM – 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM |
| Physical Specifications | |
| Dimensions (WxDxH) | 203.9 x 191.7 x 34.7 mm |
| Weight | 445g |
| Included accessories | – PoE injector – Ethernet 45 cable – Wall/ceiling mount plate |
| Physical Specifications NWA1123APRO | |
| Operating Temperature | 0°C to 50°C/32°F to 122°F |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C to 70°C/-40°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
