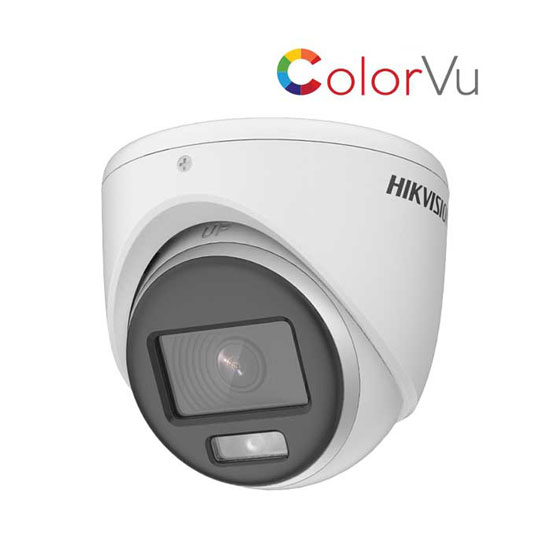

Camera HD-TVI Dome 2.0 Megapixel HIKVISION DS-2CE70DF0T-MF
Đặc tính kỹ thuật
| Model | DS-2CE70DF0T-MF |
| Camera DS-2CE70DF0T-MF | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50.000 s; NTSC: 1/30 s to 1/50.000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm Fixed Lens |
| Field of View | 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Menu DS-2CE70DF0T-MF | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR/2D DNR |
| Language | English |
| Function | Brightness, Mirror, Sharpness, Anti-Banding, Smart Light |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 2.4 W |
| Protection Level | IP67 |
| Material | Metal |
| White Light Range | Up to 20 m |
| Communication | HIKVISION-C |
| Dimension | Φ 85.1 mm × 77.62 mm |
| Weight | Approx. 320 g |
- Bảo hành: 24 tháng.
