Patch panel 24P Unshielded LS CAT.6 LS-PP-UC6-24P-WM:
- Part Number: LS-PP-UC6-24P-WM.
- 24-Port Cat.6 Unshielded Patch Panel with Wire Management, Module IDC type.
Description
- These PCB 1U 24 way patch panels come complete with cable management, accessories and full installation instructions.
- It fully complies with the requirements set out in ANSI/TIA-568-C.2
- UL Listed.
- Architectural design and flexibility – Support max. 4 connection channels
- Available in 24-port (1U) options.
- Easy cable routing and bundling through improved rear cable management.
- Electirical performances comply with ANSI/TIA-568-C.2 (Category 6/Class E level).
- Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel.
Application
- Horizontal Distribution & Backbone Cabling.
- 4/16 Mbps Token Ring (IEEE 802.5).
- 10/100/1000 BASE-T (IEEE 802.3).
- 155 Mbps ATM.
- 100Mbps TP-PMD.
- ISDN, ADSL.
- ATM LAN 1.2G.
Specification
| Part Number | LS-PP-UC6-24P-WM |
| Electrical / Mechanical Characteristics | |
| Current Rating | 1.5 A |
| Insulation Resistance | 500 MΩ |
| DC Resistance | 0.1 Ω Max |
| Insertion Life | 750 Mating Cycles |
| Plug Retention Force | 20 lbs (89N) |
| Temperature | -40ºC ~ 68ºC |
| Humidity | 10% ~ 90% RH |
| IDC Accept | 23 ~ 26 AWG Solid Wire |

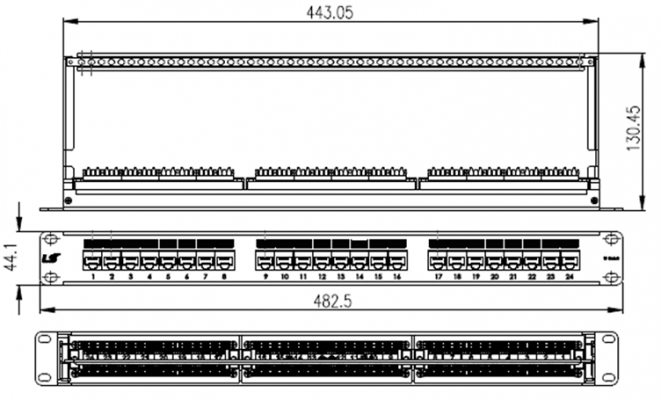

| Dimension | 1.73 x 18.99 x 5.13 inch |
| Materials | |
| Housing | High impact Flame Retardant Plastic UL 94V-0 or 2 Rated |
| Spring Wire | Phosphor Bronze Plated With 50 micro-inch (1.27 Microns) / Thick Gold over 100 Micro-inch (2.54 Microns) / Thick Nickel |
| IDC Plastic | Polycarbonate or ABS, UL 94V-0 or 2 rated over |
| IDC Contact | Phosphor Bronze Plated With 100 micro- inch(2.54 microns) / Minimum Thick Tin |
| Panel | Steel With Black Painting (Unshielded) |
| Approvals | |
| Category | ANSI/TIA-568-C.2 Category 6, ISO / IEC 11801 Class E |
| Wiring Scheme | T568A/T568B |
| Meet | FCC CFR 47 Parts 68 |
- Sản xuất tại Đài Loan.
