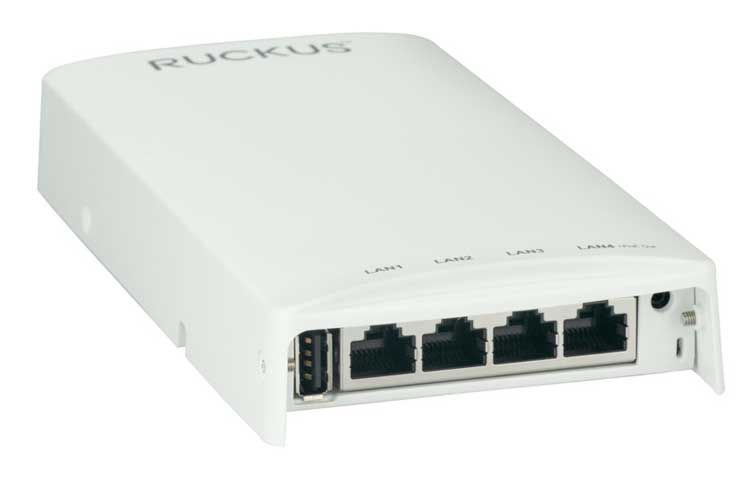

Bộ phát WiFi Ruckus H550 Wi-Fi 6, gắn tường (901-H550-WW00).
| Model: Ruckus H550 | |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80) | |
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) | |
| 802.11a/g: 6 to 54 Mbps | |
| 802.11b: 1 to 11 Mbps | |
| Supported Channels | 2.4Ghz: 1-13 |
| 5Ghz: 36-64, 100-144, 149-165 | |
| MIMO | 2×2 SU-MIMO |
| 2×2 MU-MIMO | |
| Sepamatisal Str | 2 Streams SU/MU-MIMO (2.4Ghz & 5Ghz) |
| Radio Chains and Streams | 2×2:2 (2.4Ghz & 5Ghz) |
| Channelization | 20, 40, 80MHz |
| Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3- Enterprise, 802.11i, Dynamic PSK, OWE |
| WIPS/WIDS | |
| Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v |
| Captive Portal | |
| Hotspot | |
| Hotspot 2.0 | |
| WISPr | |
| RF | |
| Antenna Type | BeamFlex+ adaptive antennas with polarization diversity |
| Adaptive antenna that provides multiple unique antenna patterns | |
| Antenna Gain (max) | Up to 1dBi |
| Peak Transmit Power (aggregate across MIMO chains) | 2.4GHz: 19dBm |
| 5GHz: 22dBm | |
| Minimum Receive Sensitivity1 | -100dBm |
| Frequency Bands | ISM (2.4-2.484GHz) |
| U-NII-1 (5.15-5.25GHz) | |
| U-NII-2A (5.25-5.35GHz) | |
| U-NII-2C (5.47-5.725GHz) | |
| U-NII-3 (5.725-5.85GHz) | |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | 2.4GHz: 574Mbps |
| 5GHz: 1,200Mbps | |
| Client Capacity | Up to 512 clients per AP |
| SSID | 8 per radio |
| RUCKUS RADIO MANAGEMENT | |
| AtimntieznantiaonOp | BeamFlex+ |
| Polarization Diversity with Maximal Ratio Combining (PD- MRC) | |
| Wi-Fi Channel Management | ChannelFly |
| Background Scan Based | |
| Client Density Management | Adaptive Band Balancing |
| Client Load Balancing | |
| Airtime based WLAN Prioritization | |
| Airtime Fairness | |
| SmartCast Quality of Service | QoS-based scheduling |
| Directed Multicast | |
| L2/L3/L4 ACLs | |
| Mobility | SmartRoam |
| Dooialsgnostic T | Spectrum Analysis |
| SpeedFlex | |
| NETWORKING | |
| Controller Platform Support | SmartZone |
| ZoneDirector | |
| Unleashed2 | |
| Cloud | |
| Standalone | |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6, dual stack |
| VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS) |
| VLAN Pooling | |
| Port-based | |
| 802.1x | Authenticator and Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | Application Recognition and Control |
| Access Control Lists | |
| Device Fingerprinting | |
| Rate Limiting | |
| IoT | Integrated BLE and Zigbee (Dual Concurrent) |
| PHYSICAL INTERFACES | |
| Ethernet | 1x 1GbE port, RJ-45, PoE In – 802.3bt Class 5 |
| 4x 1GbE ports, RJ-45, one PoE Out port – 802.3af | |
| USB | 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | 89.5 mm (W) x 178.5 mm (L), 29.3 mm (H) |
| 3.52in (W) x 7.03in (L) x 1.15in (H) | |
| Weight | 278g (0.613lbs) without bracket |
| 350g (0.772lbs) with bracket | |
| Mounting | Electrical wallbox; Standard US and EU single gang wall jack |
| Optional bracket for offset & wall mount | |
| OempepreartiantugrTe | 0°C (32°F) – 40°C (104°F) |
| Operating Humidity | Up to 95%, non-condensing |
