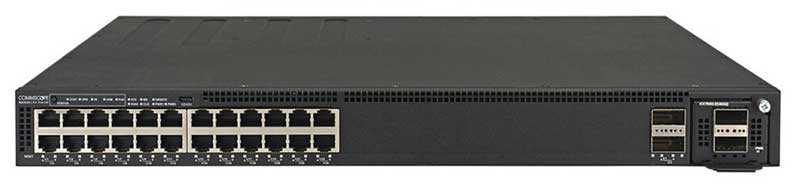

Ruckus ICX 7550-24 switch specifications.
| Non-PoE Switches | Gigabit PoE | Multigigabit PoE | Fiber | |||||
| RUCKUS ICX 7550-24 | RUCKUS ICX 7550-48 | RUCKUS ICX 7550-24P | RUCKUS ICX 7550-48P | RUCKUS ICX 7550-24ZP | RUCKUS ICX 7550-48ZP | RUCKUS ICX 7550-24F | RUCKUS ICX 7550-48F | |
| Switching capacity
(data rate, full duplex) |
368 Gbps | 416 Gbps | 368 Gbps | 416 Gbps | 800 Gbps | 1,020 Gbps | 1080 Gbps | 912 Gbps |
| Forwarding capacity
(data rate, full duplex) |
274 Mpps | 309 Mpps | 274 Mpps | 309 Mpps | 595 Mpps | 759 Mpps | 803 Mpps | 678 Mpps |
| 10/100/1000 Mbps RJ45 | 24 | 48 | 24 | 48 | ||||
| 100/1000 Mbps/2.5 Gbps RJ45
(full duplex only) |
12 |
36 |
||||||
| 100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks
(full duplex only) |
12 |
12 |
||||||
| Fixed ports: 100/1000 Mbps SFP downlinks | 36 | |||||||
| Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | 24 | 12 | ||||||
| Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 40 Gbps QSFP+ uplinks
(max) |
4 | 4 | 4 | 4 | ||||
| 40/100 Gbps QSFP28
uplinks (max) |
4 x 40 or
2 x 100 |
4 x 40 or
3 x 100 |
4 x 40 or
2 x 100 |
4 x 40 or
3 x 100 |
||||
| PoE/PoE+ ports | 24 | 48 | 24 | 48 | ||||
| Perpetual / Fast boot Poe ports | 24 | 48 | 24 | 48 | ||||
| 802.3bt (90W) ports | 24 | 48 | ||||||
| Base IPv4/v6 L3 routing
(Static routing, RIP) |
🗸 | 🗸 | 🗸 | 🗸 | 🗸 | 🗸 | 🗸 | 🗸 |
| Advanced IPv4/v6 L3 routing
(BGP, OSPF, RIP, VRRP, PIM, PBR features) |
With license |
With license |
With license |
With license |
With license |
With license |
With license |
With license |
| Aggregated Stacking Bandwidth | 960 Gbps | 960 Gbps | 2.4 Tbps | 2.4 Tbps | ||||
| Stacking density
(Max switches in a stack) |
12 | 12 | 12 | 12 | ||||
| Stacking ports
(Max ports usable for stacking) |
Up to 2 x 40G QSFP+ | Up to 2 x 40G QSFP+ | Up to 2x 100G QSFP28 | Up to 2x 100G QSFP28 | ||||
|
Max stacking distance (between stacked switches) |
10 Km | 10 Km | 10 Km | 10 Km | ||||
| Non-PoE Switches | Gigabit PoE | Multigigabit PoE | Fiber | |||||
| RUCKUS ICX 7550-24 | RUCKUS ICX 7550-48 | RUCKUS ICX 7550-24P | RUCKUS ICX 7550-48P | RUCKUS ICX 7550-24ZP | RUCKUS ICX 7550-48ZP | RUCKUS ICX 7550-24F | RUCKUS ICX 7550-48F | |
| Power inlet | C14 (AC), Dinkle 2EHDP-03P (DC) | |||||||
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC | |||||||
| Power supply rated maximum output (AC) | 2 x 400W | 2 x 1030W (100-180V)
2 x 1200W (180-240V) |
2 x 400W | |||||
| PoE power budget (AC) (two AC power supplies) | 1624 W (100-180V)
1900 W (180-240V) |
1526 W
1858W |
||||||
| Power supply rated maximum output (DC) | 2 x 400W | NA | 2 x 400W | |||||
| Switch power consumption1 (25°C)
· 10% traffic2 (no PoE load) · 100% traffic2 (full PoE load) |
53.2 W 135 W |
65 W 142.7 W |
68.5 W 1123.7 W |
83.1 W 1131.6W |
99.3 W 1152 W |
139.7 W 1183.7 W |
66.7 W 142.7 W |
81.3 W 166.8 W |
| Airflow | Front-to-back, or back-to-front (depending on power supplies and fans installed) | |||||||
| Switch heat dissipation1,3 (25°C)
· 10% traffic2 (no PoE load) |
181.4 BTU/hr |
221.6 BTU/hr |
233.6 BTU/hr |
283.3 BTU/hr |
338.6 BTU/hr |
476.4 BTU/hr |
227.4 BTU/hr |
277.2 BTU/hr |
| Weight | 6.11 kg
13.47 lb. |
6.30 kg
13.89 lb. |
6.74 kg
14.86 lb. |
7.10 kg
15.65 lb. |
6.98 kg
15.39 lb. |
7.36 kg
16.23 lb. |
6.04 kg
13.32 lb. |
6.42 kg
14.15 lb. |
||
| Dimensions | Height: 4.4 cm, 1.73 inches Width: 44.00 cm, 17.32 inches Depth: 40.64 cm, 16 inches | |||||||||
| Acoustics (at 35°C) | 51 dBA | 51 dBA | 51 dBA | 51 dBA | 51 dBA | 56.7 dBA | 51 dBA | 51 dBA | ||
| MTBF (25°C) | 717,487
hours |
612,791
hours |
319,662
hours |
304,125
hours |
287,828
hours |
213,665
hours |
853,073
hours |
532,359
hours |
||
| Features | Capabilities | |||||||||
| Connector options | · RJ-45 ports: 10/100/1000 Mbps, 2.5/5/10 Gbps ports
· SFP ports: 100 Mbps, 1 Gbps · SFP+ ports: 10 Gbps · QSFP+ ports: 40 Gbps · QSFP28 ports: 100 Gbps · RJ-45 port: Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 · Console management: USB type C (Type C plug) and RJ45 · File Transfer: USB port, standard-A plug |
|||||||||
| DRAM
NVRAM (flash) Packet Buffer Size |
· 4 GB
· 4 GB · 8 MB |
|||||||||
| Maximum MAC addresses | 16,000 (profile1), 114,000 (profile2), 32,000 (profile3) | |||||||||
| Maximum VLANs Maximum PVLANs | · 4095
· 256 |
|||||||||
| Maximum STP (spanning trees) | · 512 | |||||||||
| Maximum VEs | · 512 | |||||||||
| Maximum routes (in hardware) | · IPV4: 97280 (profile1), 8192 (profile2), 21504 (profile 3)
· IPV6: 8192 (profile1), 2048 (profile2), 17408 (profile 3) |
|||||||||
| Trunking
|
· Maximum ports per trunk: 32
· Maximum trunk groups: 256 |
|||||||||
| Maximum jumbo frame size | · 12,288 bytes | |||||||||
| QoS priority queues | · 10 for Unicast and Multicast traffic | |||||||||
| Multicast Groups | · 8192 | |||||||||
| VRF | · 128 instances | |||||||||
| Layer 2 switching | · 802.1s Multiple Spanning Tree
· 802.1x Authentication · Auto MDI/MDIX · BPDU Guard, Root Guard · Dual-Mode VLANs · MAC-based VLANs, Dynamic MAC-based VLAN activation · Dynamic Voice VLAN Assignment · Dynamic VLAN Assignment · Fast Port Span · MVRP: Multiple VLAN Registration Protocol · IGMP Snooping (v1/v2/v3) · IGMP Proxy for Static Groups · IGMP v2/v3 Fast Leave · Inter-Packet Gap (IPG) adjustment · Link Fault Signaling (LFS) · MAC Address Filtering · MAC Learning Disable |
· MLD Snooping (v1/v2)
· Multi-device Authentication · Per-VLAN Spanning Tree (PVST/PVST+/PVRST) · Mirroring – Port-based, ACL-based, MAC Filter-based · PIM-SM v2 Snooping · Port Loop Detection · Private VLAN · Remote Fault Notification (RFN) · Single-instance Spanning Tree · Trunk Groups (static, LACP) · Uni-Directional Link Detection (UDLD) · Metro-Ring Protocol (MRP) (v1, v2) · Virtual Switch Redundancy Protocol (VSRP) · Q-in-Q and selective Q-in-Q · VLAN Mapping · Topology Groups · VXLAN* |
||||||||
