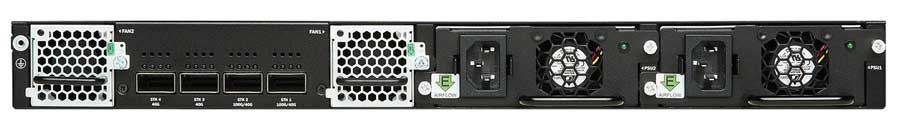

Thiết bị mạng Ruckus ICX 7650-48F Switch.
| Performance and Scalability | |
| Switching capacity (data rate, full duplex, stacking enabled) | 1.128 Tbps |
| Forwarding capacity (data rate, full duplex, stacking enabled) | 839 Mpps |
| Fixed ports: 1 Gbps SFP downlinks | 24 |
| Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | 24 |
| Modular ports 1/10 Gbps SFP/ SFP+ uplinks (max.) | 4 |
| 40 Gbps QSFP+ ports (max.) | 2 Fixed or 2 Modular |
| 100 Gbps QSFP28 ports (max.) | 2 Fixed or 2 Modular |
| Stacking ports (max ports usable for stacking) | 4×40G QSFP+ or 2×100G QSFP28 |
| Base IPv4/v6 Layer 3 routing (static routing, RIP) | Standard |
| Advanced IPv4/v6 Layer 3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF) | With license |
| Aggregated stacking bandwidth | 2.4 Tbps |
| Stacking density (maximum switches in a stack) | 12 |
| Maximum stacking distance (distance between stacked switches) | 10 km |
| Campus Fabric | Fabric Control Bridge (CB) |
| Power ICX 7650-48F | |
| Power inlet (AC) | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz |
| Power supply rated maximum | 2 x 250W |
| Switch power consumption3 (25°C) Idle (no PoE load) 10% traffic4 (full PoE load) 100% traffic4 (full PoE load) |
82 W
197 W 216 W |
| Airflow | front-to-back, or back-to-front (depending on power supplies and fans installed) |
| Switch heat dissipation (25°C)3 Idle (no PoE load) 10% traffic2 (full PoE load) 100% traffic2 (full PoE load) |
281 BTU/hour
676 BTU/hour 741 BTU/hour |
| ENVIRONMENT ICX 7650-48F | |
| Net Weight (Kg) | 7.6 kg (16.75 lb) |
| Dimensions (mm) | 440mm (17.323 in.) W x 406mm (15.984 in.) D x 44mm (1.732 in.) H; 1U |
| Acoustics (25°C, min fan speed) | 51.3 dBA |
| MTBF (25°C) | 243,130 hours |
| SPECIFICATIONS ICX 7650-48F | |
| DRAM | 4 GB |
| NVRAM (Flash) | 16 GB |
| Packet buffer size | 8 MB |
| Maximum MAC addresses | 80,000 |
| Maximum VLANs Maximum PVLANs |
• 4,095 • 256 |
| Maximum VEs | 512 |
| Maximum routes (in hardware) | • 128K (IPv4) • 7K (IPv6) • 12,000 (Next Hop Addresses) |
| Trunking | • Maximum ports per trunk: 16 • Maximum trunk groups: 256 |
| Maximum jumbo frame size | 9,216 bytes |
| QoS priority queues | 10 for Unicast and Multicast traffic |
| Multicast groups | • 8,192 (Layer 2) • 8,192 (Layer 3) |
| VRF | 50 instances |
| FEATURE SETS ICX 7650-48F | |
| Layer 2 feature set | • 802.1s Multiple Spanning Tree • 802.1x Authentication • Auto MDI/MDIX • BPDU Guard, Root Guard • Dual-Mode VLANs • MAC-based VLANs, Dynamic MAC-based VLAN activation • Dynamic Voice VLAN Assignment • Dynamic VLAN Assignment • Fast Port Span • GVRP: GARP VLAN Registration Protocol • IGMP Snooping (v1/v2/v3) • IGMP Proxy for Static Groups • IGMP v2/v3 Fast Leave • Inter-Packet Gap (IPG) adjustment • Link Fault Signaling (LFS) • MAC Address Filtering • MAC Learning Disable • MLD Snooping (v1/v2) • Multi-device Authentication • Per-VLAN Spanning Tree (PVST/PVST+/PVRST) • Mirroring – Port-based, ACL-based, MAC Filter-based, and VLAN-based • PIM-SM v2 Snooping • Port Loop Detection • Private VLAN • Remote Fault Notification (RFN) • Single-instance Spanning Tree • Trunk Groups (static, LACP) • Uni-Directional Link Detection (UDLD) • Metro-Ring Protocol (MRP) (v1, v2) • Virtual Switch Redundancy Protocol (VSRP) • Q-in-Q and selective Q-in-Q • VLAN Mapping • Topology Groups |
| Base Layer 3 IP routing | • IPv4 and IPv6 static routes − RIP v1/v2, RIPng • ECMP • Port-based Access Control Lists • Layer 3/Layer 4 ACLs • Host routes • Virtual interfaces • Routed interfaces • Route-only support • Routing between directly connected subnets |
| Premium Layer 3 IP routing (require license) | • IPv4 and IPv6 dynamic routes • OSPF v2, OSPF v3 (IPv6) • PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4/IPv6 multicast routing functionality) • PBR • Virtual Route Redundancy Protocol VRRP v3 (IPv6) • VRRP-E (IPv4, IPv6) • BGP4, BGP4+ (IPv6) • GRE • IPv6 over IPv4 tunnels • VRF (IPv4 and IPv6) • MSDP |
| Quality of Service (QoS) | • ACL Mapping and Marking of ToS/DSCP • ACL Mapping and Marking of 802.1p • ACL Mapping to Priority Queue • Classifying and Limiting Flows Based on TCP Flags • DiffServ Support • Honoring DSCP and 802.1p • MAC Address Mapping to Priority Queue • Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP • Priority Flow Control |
| Traffic management | • ACL-based inbound rate limiting and traffic policies • Broadcast, multicast, and unknown unicast rate limiting • Inbound rate limiting per port • Outbound rate limiting per port and per queue |
| Security | • MACsec • 802.1X authentication • MAC authentication • Flexible authentication • Web authentication • DHCP snooping • Dynamic ARP inspection • Neighbor Discovery (ND) Inspection • Tri-level Access Mode (EXEC, Privileged EXEC and Global Configuration) • EAP pass-through support • EEE 802.1X username export in sFlow • Protection against Denial of Service (DoS) attacks Authentication, Authorization, and Accounting (AAA) • MAC Address Locking MAC Port Security • Advanced Encryption Standard (AES) with SSHv2 • RADIUS/TACACS/TACACS+ • Secure Copy (SCP) • Secure Shell (SSHv2) • Local Username/Password • Change of Authorization (CoA) RFC 5176 • Trusted Platform Module • Protected ports • RADSEC (RFC 6614) • Encrypted Syslog (RFC 5425) |
| High availability (require license) | • Redundant hot-swappable power supplies • Hot-swappable fan trays • Layer 3 VRRP/VRRP-E protocol redundancy • Real-time state synchronization across the stack • Hitless failover and switchover from master to standby stack controller • Hot insertion and removal of stacked units • Layer 2 VSRP switch redundancy • In Service Software Update (ISSU) |
| SDN features | • Support for OpenFlow v1.0 and v1.3 • OpenFlow support with hybrid port mode • Operates with OpenDaylight SDN Controllers and the applications running on the controller |
| STANDARD COMPLIANCE ICX 7650-48F | |
| IEEE standards compliance | • 802.1AB LLDP • 802.1D MAC Bridging • 802.1p Mapping to Priority Queue • 802.1s Multiple Spanning Tree (MST) • 802.1w Rapid Reconfiguration of Spanning Tree • 802.1x Port-based Network Access Control (PNAC) • 802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD) • 802.3ab 1000BASE-T • 802.1 AX-2008 Link Aggregation • 802.3ae 10 Gigabit Ethernet • 802.3af Power over Ethernet • 802.3at Power over Ethernet Plus • 802.3u 100Base-TX • 802.3x Full duplex and Flow Control • 802.3z 1000Base-SX/LX • 802.3 MAU MIB (RFC 2239) • 802.3ba 40 and 100 Gbps Ethernet • 802.1AE-MACsec (with license) • 802.3az Energy Efficient Ethernet • 802.1Q VLAN Tagging • 802.1BR Bridge Port Extension |
| ENVIRONMENT ICX 7650-48F | |
| Temperature | Operating temperature: 0°C to 45°C/32°F to 113°F at sea level Storage temperature: −40°C to 70°C/−40°F to 158°F |
| Humidity | Operating relative humidity: 10% to 90% at 50°C, non-condensing Non-operating relative humidity: 5% to 95% at 70°C, non-condensing |
| Altitude | Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum |
| COMPLIANCE/CERTIFICATIONICX 7650-48F | |
| Electromagnetic emissions | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker EN 61000-6-3 Emission Standard |
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1; IEC60950-1; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products |
| Immunity | EN 61000-6-1 Generic Immunity and Susceptibility; EN 55024 Immunity Characteristics; EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags |
| Environmental regulatory compliance | RoHS-compliant (6 of 6); WEEE-compliant |
| Vibration | IEC 68-2-36, IEC 68-2-6 |
| Shock and drop | IEC 68-2-27, IEC 68-2-32 |
