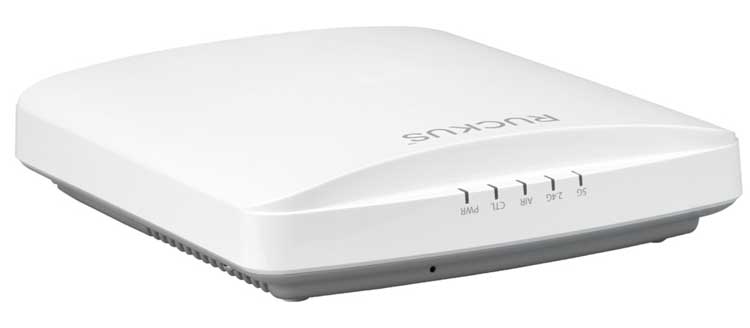

Bộ phát WiFi Ruckus R650 Wi-Fi 6 (901-R650-WW00).
| Model: Ruckus R650 | |
| Wi-Fi Standards | • IEEE 802/11a/b/g/n/ac/ax |
| Supported Rates | • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps |
| Supported Channels | • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 |
| MIMO | • 4×4 SU-MIMO • 4×4 MU-MIMO |
| Spatial Streams | • 4 streams SU/MU MIMO 5GHz • 2 streams SU/MU MIMO 2.4GHz |
| Radio Chains and Streams | • 4×4:4 (5GHz) • 2×2:2 (2.4GHz) |
| Channelization | 20, 40, 80, 160/80+80MHz |
| Security | • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS |
| Other Wi-Fi Features | • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr |
| RF | |
| Antenna Type | • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides unique antenna patterns per band |
| Antenna Gain (max) | • Up to 3dBi |
| Peak Transmit Power (Tx port/chain + Combining gain) | • 2.4GHz: 26dBm • 5GHz: 28 dBm |
| Frequency Bands | • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | • 2.4GHz: 1148 Mbps • 5GHz: 2400 Mbps |
| Client Capacity | • Up to 512 clients per AP |
| SSID | • Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management | • ChannelFly • Background Scan Based |
| Client Density Management | • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnostic Tools | • Spectrum Analysis • SpeedFlex |
| NETWORKING | |
| Controller Platform Support | • SmartZone • ZoneDirector • Unleashed • Standalone |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6, dual-stack |
| VLAN | • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based |
| 802.1x | Authenticator & Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting |
| IoT Capbale | • Yes |
| PHYSICAL INTERFACES | |
| Ethernet | • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at) with Category 5/5e/6 cable • LLDP |
| USB | • 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | • 22.4cm (L), 19.4cm (W), 4.7cm (H) • 8.8in (L) x 7.6in (W) x 1.9in (H) |
| Weight | • 0.854 kg • 1.88 lbs |
| Mounting | • Wall, Acoustic ceiling, Desk • Secure Bracket (sold separately) |
| Physical Security | • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately) |
| Operating Temperature | • 0ºC (32ºF) – 40ºC (104ºF) |
| Operating Humidity | Up to 95%, non-condensing |
| POWER | |
| 802.3af PoE |
|
| 802.3at PoE+ |
|
| CERTIFICATIONS AND COMPLIANCE | |
| Wi-Fi Alliance | • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint®, Vantage |
| Standards Compliance | • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation |
Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
