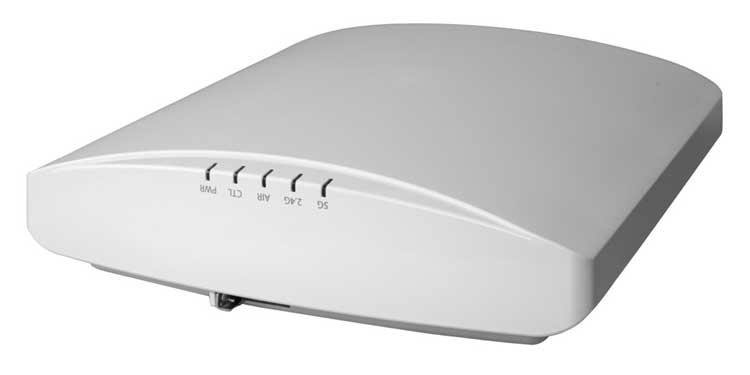

RUCKUS R850 Indoor Access Point

Name: RUCKUS R850 Indoor Access Point
SKU: R850

Vui lòng gọi

Ruckus R850 (901-R850-Z200)

901-R850-Z200 – Ruckus R850 Ultra High Performance Wi-Fi 6 8×8:8 Indoor Access Point :

Wi-Fi 6 (802.11ax) 8×8:8
BeamFlex+
1x 1/2.5/5 Gbps port RJ-45 + 1x 10/100/1000 Mbps port RJ-45
Up to 1024 clients per AP
SSID up to 16 per radio

SKU: R850 Danh mục: Thiết bị mạng RUCKUS Thẻ: R850

Mô tả

Bộ phát sóng Wifi Ruckus R850 Indoor – 901-R850-WW02.

Model: RUCKUS R850

Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Supported Rates	802.11ax: 4 to 4800 Mbps 802.11ac: 6.5 to 3467 Mbps 802.11n: 6.5 to 600 Mbps 802.11a/g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps
Supported Channels	2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165
MIMO	8×8 MU-MIMO 8×8 SU-MIMO
Spatial Streams	8 MU-MIMO 8 SU-MIMO
Radio Chains and Streams	8×8:8
Channelization	20, 40, 80MHz
Modulation	OFDMA (up to 1024-QAM)
Security	WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK WIPS/WIDS
Other Wi-Fi Features	WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/ vHotspot Hotspot 2.0 Captive Portal WISPr
RF
Antenna Type	BeamFlex+ Adaptive Antennas with 4000+ unique antenna patterns Horiziontal and Vertical polarization (PD-MRC)
Antenna Gain (max)	Up to 2 dBi
Frequency Bands	2.4 – 2.484 GHz 5.17 – 5.33 GHZ 5.49 – 5.71 GHz 5.735 – 5.835 GHz
PERFORMANCE AND CAPACITY
Peak PHY Rates	2.4GHz: 1.148 Gbps (11ax) 5GHz: 4.8 Gbps (11ax)
Client Capacity	Up to 1024 clients per AP
Simultaneous VoIP Clients	Up to 60 per AP
SSID	Up to 16 per radio
RUCKUS RADIO MANAGEMENT
Antenna Optimization	BeamFlex+ PD-MRC
Wi-Fi Channel Management	ChannelFly
Client Density Management	Band Balancing Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization
Queuing & Scheduling	SmartCast
Mobility	SmartRoam
Diagnostic Tools	Spectrum Analysis SpeedFlex
High Density Deployments (RF Innovations)	Perpacket Adaptive Power Adaptive Wi-Fi Cell Size Transient Client Management Airtime Decongestion
NETWORKING
Controller Platform Support	SmartZone ZD Standalone Cloud
Mesh	SmartMesh™ wireless meshing technology
IP	IPv4, IPv6
VLAN	802.1Q BSSID-based (16 BSSIDs / radio) Port-based Dynamic, per user based on RADIUS
802.1x	Wired & wireless Authenticator & Supplicant
Tunne	RuckusGRE, SoftGRE
Policy Management Tools	Application Recognition and Control Access Control Lists Device Fingerprinting
OTHER RADIO TECHNOLOGIES
IoT Capable	Yes
PHYSICAL INTERFACES
Ethernet	1x 1/2.5/5 Gbps port, RJ-45 1x 10/100/1000 Mbps port, RJ-45
USB	1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size	22.19 x 24.96 x 6 cm 8.74 x 9.83 x 2.36 in.
Weight	1.53 kg 3.37 lbs
Mounting	Wall, Acoustic ceiling, Desk Secure Bracket (sold separately)
Physical Security	Hidden Latching Mechanism
Operating Temperature	-0C (32F) to 50°C (122°F)
Operating Humidity	Up to 95%, non-condensing
POWER CONSUMPTION
DC Power, PoH, uPoE (Idle) 16.1W	2.4GHz (4×4) Enabled 5GHz (8×8) Enabled (No Clients Associated)
DC Power, PoH, uPoE (Max) 31.0W	2.4GHz (4×4) Tx 20 dBm 5GHz (8×8) Tx 22 dBm
802.3at (Mode 0) 23.8W	2.4GHz (4×4) Tx 20 dBm 5GHz (4×4) Tx 22 dBm
802.3at (Mode 1) 25.31W	2.4GHz (4×4) Tx 20 dBm 5GHz (8×8) Tx 20 dBm
802.3af (Not recommended) 12.4W	2.4GHz disabled 5GHz disabled
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance	Wi-Fi CERTIFIED™ a, b, g, n, ac, ax Passpoint® Vantage
Standards Compliance	EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration EN 62311 Human Safety/RF Exposure UL 2043 Plenum WEEE & RoHS ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services	SPoT
Network Analytics	SmartCell Insight (SCI)
Security and Policy	Cloudpath
IoT	Ruckus IoT Suite

Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.

RUCKUS R850 Indoor Access Point

Ruckus R850 (901-R850-Z200)

Bộ phát sóng Wifi Ruckus R850 Indoor – 901-R850-WW02.
