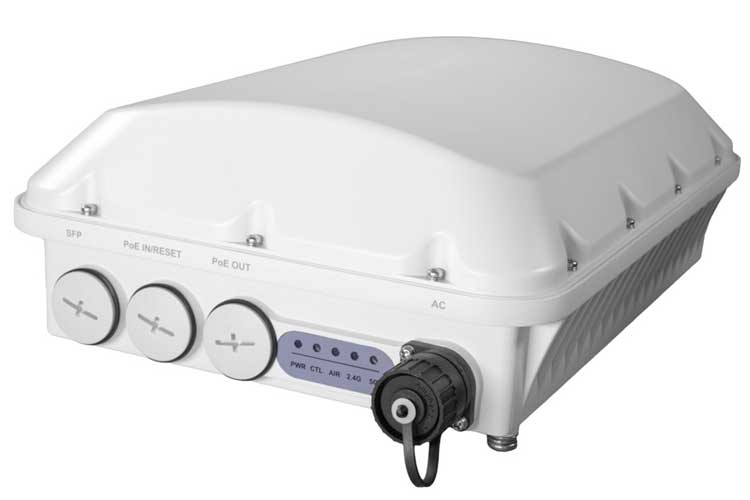

Thiết bị Wi-Fi 6 Outdoor Access Point Ruckus T750SE.
| Model | Ruckus T750SE | |||
| WI-FI | ||||
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac/ax | |||
| Supported Rates | · 802.11ax: 4 to 2400 Mbps · 802.11ac: 6.5 to 1732 Mbps · 802.11n: 6.5 to 600 Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
|||
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
|||
| MIMO | · 4×4 SU-MIMO · 4×4 MU-MIMO |
|||
| Spatial Streams | · 4 for both SU-MIMO & MU-MIMO | |||
| Radio Chains and Streams | · 4×4:4 | |||
| Channelization | · 20, 40, 80, 160MHz | |||
| Security | · WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK, OWE · WIPS/WIDS |
|||
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
|||
| RF Ruckus T750SE | ||||
| Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides 4,000+ unique antenna patterns per band · Internal 120-degree sectorized antenna with option to attach an external antenna |
|||
| Antenna Gain (max) | · 2.4GHz: 6.0dBi · 5GHz: 8.0dBi |
|||
| Peak Transmit Power (Tx port/chain + Combining gain) | · 2.4GHz: 28dBm · 5GHz: 28dBm |
|||
| Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
|||
| PERFORMANCE AND CAPACITY | ||||
| Peak PHY Rates | · 2.4 GHz: 1148 Mbps · 5 GHz: 2400 Mbps |
|||
| Client Capacity | · Up to 1024 clients per AP | |||
| SSID | · Up to 31 per AP | |||
| RUCKUS RADIO MANAGEMENT | ||||
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PD MRC) |
|||
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
|||
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
|||
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
|||
| Mobility | · SmartRoam | |||
| Diagnostic tools | · Spectrum Analysis · SpeedFlex |
|||
| NETWORKING Ruckus T750SE | ||||
| Controller Platform Support | · SmartZone · ZoneDirector · Cloud · Standalone · Unleashed |
|||
| Mesh | · SmartMesh™ wireless meshing technology. Selfhealing Mesh | |||
| IP | · IPv4, IPv6, dual-stack | |||
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
|||
| 802.1x | · Authenticator & Supplicant | |||
| Tunnel | · L2TP, GRE, Soft-GRE | |||
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
|||
| IoT Capable | · Yes | |||
| PHYSICAL INTERFACES Ruckus T750SE | ||||
| Ethernet | · 1×2.5 Gbps, 1 x 10/100/1000 Mbps ports, RJ-45 · LACP |
|||
| Fiber | · SFP, 1Gbps, SFP+ 10 Gbps | |||
| External Antenna Connectors | · 4x N-type female connectors | |||
| PHYSICAL CHARACTERISTICS | ||||
| Physical Size | · 34.08cm (L), 24.06cm (W), 11.17cm (H) | |||
| Weight | · 3.31kg | |||
| Mounting | · Pole Mount · Wall Mount · Flat Surface · Bracket included in the box |
|||
| Operating Temperature | · -40°C (-40°F) to 65°C (145°F) | |||
| Operating Humidity | · Up to 95%, non-condensing | |||
| Wind Survivabiity | · Up to 266km/h (165mph) | |||
| POWER Ruckus T750SE | ||||
| Mode | AC Power | 802.3bt Class 7 (Maximum Functionality With PSE Out) | 802.3at (Reduced Functionality Without PSE) |
Idle |
| Power Consumption | 63.7W (SFP+ Backhaul) 64.6W (Ethernet Backhaul) |
57W | 24.2W | 10.75W |
| System Configuration | · Full Functionality · 2nd Ethernet Port enabled · PSE Out (26W) available · Onboard IoT enabled · USB enabled (3W) – omni SKU |
· Full Functionality · 2nd Ethernet Port enabled · PSE Out (26W) available · Onboard IoT enabled · USB enabled (3W) – omni SKU |
· 2nd Ethernet Port enabled · PSE Out disabled · Onboard IoT enabled · USB enabled (3W) – omni SKU |
· 2nd Ethernet Port enabled · PSE Out disabled · Onboard IoT disabled · USB disabled |
| Certifications and Compliance | ||||
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED™ 6 · Wi-Fi Enhanced Open™ · WPA2™ – Personal · WPA2™ – Enterprise · WPA3™ – Personal · WPA3™ – Enterprise · Wi-Fi Agile Multiband™ · Wi-Fi Optimized Connectivity™ · Wi-Fi Vantage™ · WMM® · Passpoint® |
|||
| Standards Compliance | · EN 60950-1 Safety · EN 60601-1-2 Medical · EN 61000-4-2/3/5 Immunity · EN 50121-1 Railway EMC · EN 50121-4 Railway Immunity · IEC 61373 Railway Shock & Vibration · EN 62311 Human Safety/RF Exposure · WEEE & RoHS · ISTA 2A Transportation |
|||
