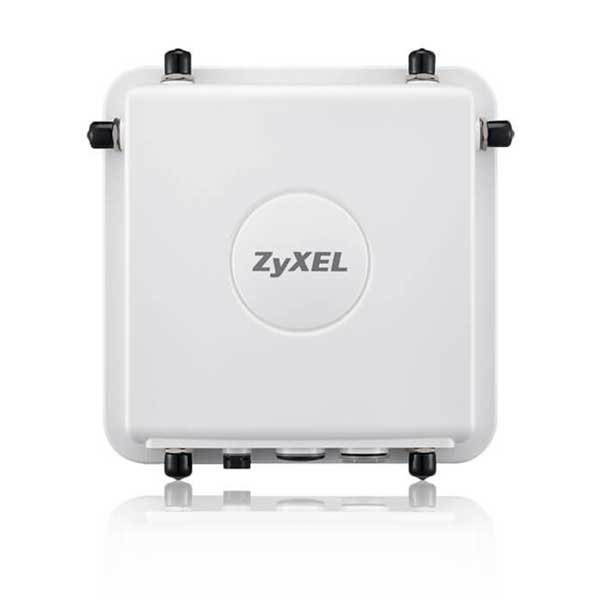

802.11ac Dual Radio External Antenna 3×3 Outdoor Access Point Zyxel WAC6553D-E.
| Model | WAC6553D-E |
| Wireless | |
| Standard | IEEE 802.11 ac/n/g/b/a |
| MIMO | MIMO |
| Wireless speed | 2.4 GHz (450 Mbps) 5 GHz (1300 Mbps) |
| Bandwidth | 20-, 40- and 80-MHz |
| Conducted typical transmit output power | 2.4 GHz (29 dBm) 5 GHz (29 dBm) |
| Switching Capacity (Gbps) | |
| Antenna type | 6 N-type connectors |
| Antenna gain | – |
| Minimum receive sensitivity | Min. Rx sensitivity up to -102 dBm |
| WLAN Feature WAC6553D-E | |
| Band Steering | Yes |
| WDS | Yes |
| ZyMesh (Controller-managed mode) | Yes (by License) |
| Smart mesh (Cloud mode) | Yes |
| Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
| Security | |
| Encryption | WEP/WPA/WPA2-PSK |
| Authentication | WPA/WPA2-Enterprise/EAP/ IEEE 802.1X/RADIUS authentication |
| Access management | L2-isolation/MAC filtering/ Rogue AP detection |
| Networking | |
| IPv6 | Yes |
| VLANs | Yes |
| WMM | Yes |
| U-APSD | Yes |
| DiffServ marking | Yes |
| Management WAC6553D-E | |
| Operating mode | Nebula Cloud managed/controller-managed / standalone |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations ■ IP configuration ■ IP renew ■ Device reboot ■ Device locating ■ Web GUI access ■ Firmware upgrade ■ Password configuration ■ One-click quick association with Zyxel AP Configurator (ZAC) |
| ZAC | • Batch AP configuration • Batch AP firmware upgrade • Batch AP profile backup |
| Zyxel Wireless Optimizer | • WiFi AP planning • WiFi coverage detection • Wireless health management |
| Web UI/CLI | Yes |
| SNMP | Yes |
| Physical Specifications WAC6553D-E | |
| Item | Dimensions (WxDxH)(mm/in.) 255 x 256 x 62/10.04 x 10.08 x 2.44 Weight (g/lb.) 1708/3.77 |
| Packing | Dimensions (WxDxH)(mm/in.) 393 x 158 x 430/15.47 x 6.22 x 16.93 Weight (g/lb.) 3904/8.63 |
| Included accessories | • Pole/wall mounting kits • PoE injector (optional) • Power cord (optional) |
| MTBF (hr) | 562,413 |
| Physical Interfaces | |
| Ethernet port | 1 x 10/100/1000M LAN |
| Power | PoE (802.3at): power draw 25 W |
| Environmental Specifications | |
| Operating | Temperature -40°C to 60°C/-40°F to 140°F Humidity 10% to 90% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
| Weather protection | IP66 (Embedded heater for harsh weather) |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
