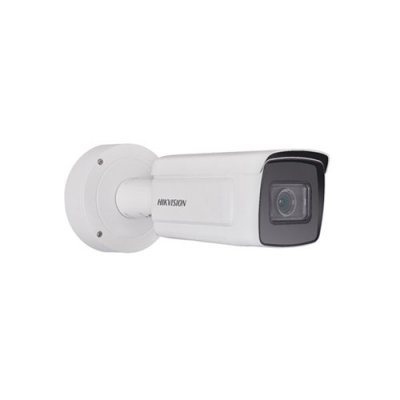

HIKVISION DS-2CD7A26G0/P-IZS là camera IP thân trụ hồng ngoại, lắp đặt ngoài trời chuyên nhận dạng biển số xe. Hỗ trợ chuẩn nén H.265+, cho tầm quan sát xa từ 50 mét. Được thiết kế thẩm mỹ, gọn gàng, tinh tế, vật bền và nhiều tính năng tối ưu.
Camera IP nhận diện biển số HIKVISION DS-2CD7A26G0/P-IZS:
- Camera nhận dạng biển số DeepinView.
- Nhận dạng biển số ô tô/ xe máy.
- Độ phân giải: 1920×1080 @ 60fps.
- Ống kính: 2.8~12mm (8~32mm)
- Độ nhạy sáng: 0.002 Lux @ F1.2, AGC ON.
- Chuẩn nén: H.265+, H.265, H.264+, H.264.
- Chống ngược sáng thực WDR 140dB.
- Hỗ trợ 5 luồng dữ liệu.
- Hỗ trợ khe cắm thẻ nhớ tối đa 256GB.
- Hỗ trợ 1 cổng báo động vào/ra.
- Tiêu chuẩn chống bụi nước: IP67.
- Tiêu chuẩn chống va đập: IK10.
- Tầm quan sát hồng ngoại: 50 mét.
- Phù hợp dùng cho cổng, lối ra vào.
Đặc tính kỹ thuật
Camera DS-2CD7A26G0/P-IZS | |
Image Sensor | 1/1.8 inch Progressive Scan CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Slow shutter | Yes |
Shutter time | 1 s to 1/100,000 s |
Lens | 2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° |
Adjustment Range | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
Day& Night | IR Cut Filter |
Wide Dynamic Range | 140dB |
Compression Standard
|
|
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
H.264 code profile | Baseline Profile/Main Profile/High Profile |
Video bit rate | 32Kbps~16Mbps |
|
|
Max. Image Resolution | 1920 x 1080 |
Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
BLC | Support |
HLC | Support |
Smart Defog | Support |
EIS | Support |
3D DNR | Support |
Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video |
Network
|
|
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Intelligent
|
|
Behavior analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
Interface
|
|
Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Alarm | 2 inputs, 2 outputs (up to 24VDC 1A or 110VAC 500mA) |
Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button | Yes |
Smart Feature-set
|
|
Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
Line Crossing Detection | Cross a pre-defined virtual line |
Intrusion Detection | Enter and loiter in a pre-defined virtual region |
Region Entrance | Enter a pre-defined virtual region from the outside place |
Region Exiting | Exit from a pre-defined virtual region |
Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal | Objects removed from the pre-defined region, such as the exhibits on display |
Exception Detections | Scene change detection, defocus detection |
General
|
|
IR Range | up to 50m |
Operation Condition | -30°C to 60°C |
Power Consumption | 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A |
Impact Protection | IK10 |
Weather Proof | IP67 |
Dimensions | Φ140 × 351 mm |
Weight | approx. 2.5 kg |
- Bảo hành: 24 tháng.
Để cập nhật thông tin giá Camera IP Hikvision mới nhất, quý khách hàng vui lòng liên hệ HOTLINE 0902 553 573 – 0902 960 962 hoặc Fanpage để được hỗ trợ tốt nhất.
