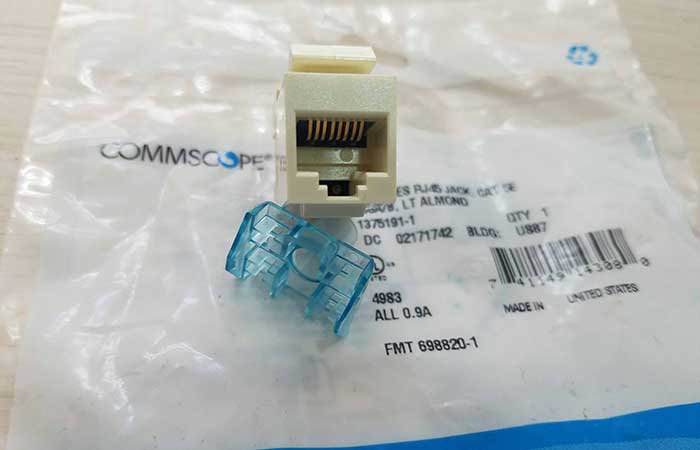

Nhân mạng RJ45-Modular Jack COMMSCOPE/AMP CAT5E (1375191-1)

Nhân mạng RJ45-Modular Jack COMMSCOPE/AMP CAT5E (1375191-1):

• COMMSCOPE/AMP Category 5E Modular Jack, Unshielded, RJ45, SL, T568A/B, Almond (ASSY, SL 110JACK, C5E, LT.ALMOND).
• Materials: 1375191-1
  o   Housing – Polyphenylene oxide, 94V-0 rated
  o   110 Blocks – polycarbonate, 94V-0 rated.
• Jack contacts – beryllium copper, plated with 1.27 μm [.000050] thick gold in localized area and 3.81 μm [.000150]
• minimum thick tin-lead in solder area over 1.27 μm [.000050] minimum thick nickel under plate.
• Insulation Displacement Contacts – Phosphorous bronze, plated with 3.81μm [150μin] minimum thick bright tin-lead over 1.27μm [50μin] minimum thick nickel under plate
• Electrical Characteristics:
  o   Modular Jack – 750 mating cycles
  o   Voltage – 150 VAC max.
• Operating Temperature -40°C to +70°C (-40° – 158°F)
• Mounting panel thickness: 1.473 – 1.600 mm [.058 – .063′].
• Approvals: UL File Number E81956, CSA
• Hàng chính hãng COMMSCOPE/AMP.

Để cập nhật thông tin giá Cáp Mạng Commscope mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 hoặc Fanpage để được hỗ trợ tốt nhất.
