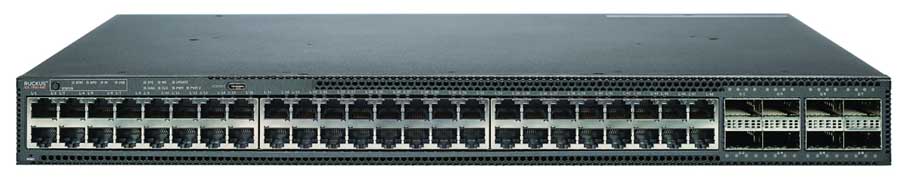

Ruckus ICX 7850-48C Switch

Vui lòng gọi

Ruckus ICX 7850-48C Switch

48x 1/10G GbE RJ45 ports
8x 40/100 Gbps QSFP28 ports supporting native 40 GbE or 100 GbE, or breakout* to 4×10 GbE or 4×25 GbE
Up to 8 of the QSFP28 ports as stacking ports
2x hot-swappable load sharing power supplies and 5x hot- swappable fan assemblies with reversible airflow options (Power supplies and FAN airflows must be the same)

Mã: ICX 7850-48C Danh mục: Thiết bị mạng RUCKUS Thẻ: ICX 7850-48C

Mô tả
Đánh giá (0)

Ruckus ICX 7850-48C Switch

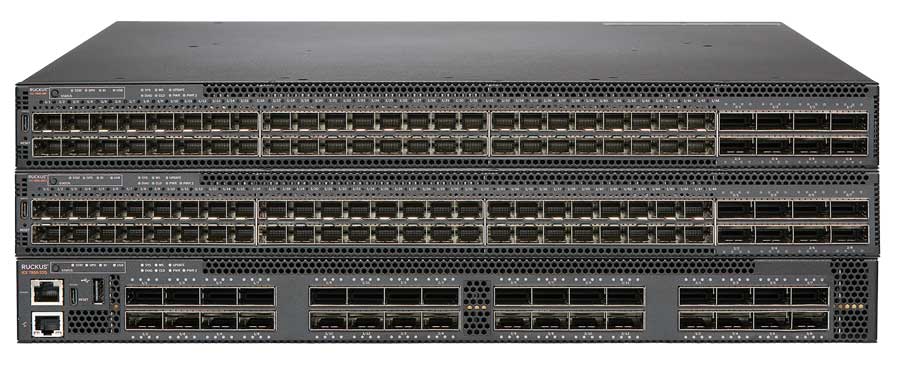

Ruckus ICX 7850-32Q, ICX 7850-48FS, ICX 7850-48F, ICX 7850-48C Switch

Ruckus ICX 7850-48C Switch.

Main Specifications ICX 7850-48C
Product Description	Ruckus ICX 7850-48C – switch – 48 ports – managed – rack-mountable
Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Front to back airflow rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	48 x 10GBase-T + 8 x 40 Gigabit / 100 Gigabit QSFP28
Performance	Switching capacity: 2.56 Tbps ¦ Forwarding capacity: 1.9 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps
Capacity	Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ Priority QoS queues: 10 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 ¦ VRF instances: 64
MAC Address Table Size	32K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI
Features	Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, Metro Ring Protocol (MRP) support, sFlow, Virtual Switch Redundancy Protocol (VSRP) support, MRP-II support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, Jumbo Frames support, DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, IGMP proxy, 802.1x authentication, SNMP support, Type of Service (ToS), 5 fans, In-Service Software Upgrade (ISSU), Secure Copy (SCP), Link Aggregation, MAC address authentication, protected ports, Multi-Chassis Trunking (MCT), Encapsulated Remote SPAN (ERSPAN), VLAN Tagging, Telnet server, Telnet client, Rapid Reconfiguration of Spanning Tree (RSTP), SmartZone
Compliant Standards	IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR
Power	AC 100-240 V (50/60 Hz)
Power Redundancy	Yes
Dimensions (WxDxH)	17.3 in x 17.5 in x 1.7 in
Weight	20.06 lbs
Manufacturer Warranty	Limited lifetime warranty
General ICX 7850-48C
Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Front to back airflow rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	48 x 10GBase-T + 8 x 40 Gigabit / 100 Gigabit QSFP28
Performance	Switching capacity: 2.56 Tbps ¦ Forwarding capacity: 1.9 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps
Capacity	Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ Priority QoS queues: 10 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 ¦ VRF instances: 64
MAC Address Table Size	32K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD
Remote Management Protocol	SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI
Encryption Algorithm	AES
Authentication Method	RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, Metro Ring Protocol (MRP) support, sFlow, Virtual Switch Redundancy Protocol (VSRP) support, MRP-II support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, Jumbo Frames support, DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, IGMP proxy, 802.1x authentication, SNMP support, Type of Service (ToS), 5 fans, In-Service Software Upgrade (ISSU), Secure Copy (SCP), Link Aggregation, MAC address authentication, protected ports, Multi-Chassis Trunking (MCT), Encapsulated Remote SPAN (ERSPAN), VLAN Tagging, Telnet server, Telnet client, Rapid Reconfiguration of Spanning Tree (RSTP), SmartZone
Compliant Standards	IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR
RAM	4 GB
Flash Memory	32 GB
Expansion / Connectivity ICX 7850-48C
Interfaces	8 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x console (USB) Type C ¦ 48 x 10GBase-T RJ-45
Manufacturer Warranty ICX 7850-48C
Service & Support	Limited warranty – lifetime
Miscellaneous ICX 7850-48C
MTBF	222,514 hours
Compliant Standards	CISPR 22 Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, IEC 68-2-32, IEC 68-2-27
Power ICX 7850-48C
Power Device	Internal power supply – hot-plug
Installed Qty	2
Max Supported Qty	2
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Power Provided	650 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Operational	254.4 Watt
Environmental Parameters ICX 7850-48C
Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	10 – 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	104 °F
Humidity Range Storage	10 – 90% (non-condensing)
Dimensions & Weight ICX 7850-48C
Width	17.3 in
Depth	17.5 in
Height	1.7 in
Weight	20.06 lbs

Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
