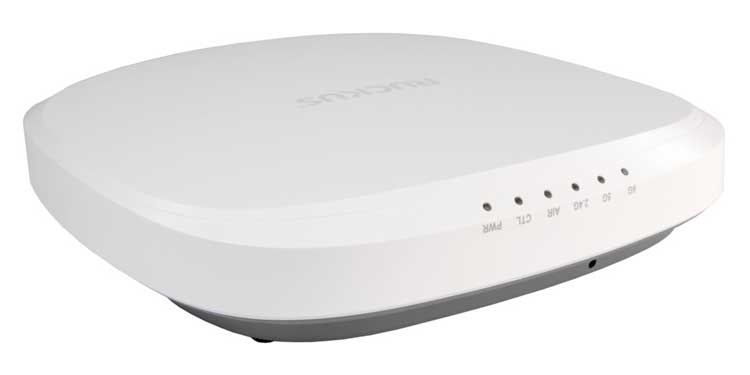

Bộ phát WiFi Ruckus R560 (901-R560-WW00).
| Model: Ruckus R560 | |
| Wi-Fi Standards | IEEE 802/11a/b/g/n/ac/ax, WiFi-6E |
| Supported Rates | 802.11ax: 4 to 2402 Mbps |
| 802.11ac: 6.5 to 866 Mbps | |
| 802.11n: 6.5 to 300 Mbps | |
| 802.11a/g: 6 to 54 Mbps | |
| 802.11b: 1 to 11 Mbps | |
| Supported Channels | 2.4GHz: 1-13 |
| 5GHz: 36-64, 100-144, 149-165 | |
| 6GHz: 1-233 | |
| MIMO | 2×2 SU-MIMO |
| 2×2 MU-MIMO | |
| Spatial Streams | 2 for both SU-MIMO & MU-MIMO |
| Radio Chains and Streams | 2×2:2 |
| Channelization | 20, 40, 80, 160 MHz |
| Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK |
| WIPS/WIDS | |
| Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v |
| MBO | |
| Web Authentication and Guest Access | |
| Hotspot, Hotspot 2.0 | |
| Captive Portal | |
| WISPr | |
| RF | |
| Antenna Type | BeamFlex+ adaptive antennas with polarization diversity |
| Adaptive antenna that provides 4,000+ unique antenna patterns per band | |
| Antenna Gain (max) | Up to 4dBi |
| 2.4GHz: 26dBm | |
| Peak Transmit Power (Tx port/ chain + Combining gain) | 5GHz: 25dBm |
| 6GHz: 22dBm | |
| Frequency Bands | ISM (2.4-2.484GHz) |
| U-NII-1 (5.15-5.25GHz) | |
| U-NII-2A (5.25-5.35GHz) | |
| U-NII-2C (5.47-5.725GHz) | |
| U-NII-3 (5.725-5.85GHz) | |
| U-NII-5 (5.925–6.425GHz) | |
| U-NII-6 (6.425–6.525GHz) | |
| U-NII-7 (6.525–6.875GHz) | |
| U-NII-8 (6.875–7.125GHz) | |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | 2.4GHz: 591 Mbps |
| 5GHz: 1237.5 Mbps | |
| 6GHz: 2882 Mbps (MCS13), 2402 Mbps (MCS11) | |
| Client Capacity | Up to 1536 clients per AP |
| SSID | Up to 33 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | BeamFlex+ |
| Polarization Diversity with Maximal Ratio Combining (PD- MRC) | |
| Wi-Fi Channel Management | ChannelFly |
| Background Scan Based | |
| Client Density Management | Adaptive Band Balancing |
| Client Load Balancing | |
| Airtime Fairness | |
| Airtime-based WLAN Prioritization | |
| SmartCast Quality of Service | QoS-based scheduling |
| Directed Multicast | |
| L2/L3/L4 ACLs | |
| Mobility | SmartRoam |
| Diagnostic Tools | Spectrum Analysis |
| SpeedFlex | |
| NETWORKING | |
| Controller Platform Support | SmartZone |
| Standalone | |
| Cloud (Future support) | |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh in 2.4 GHz, 5GHz, and 6GHz |
| IP | IPv4, IPv6, dual-stack |
| VLAN | 802.1Q (1 per BSSID or dynamic per user based on RADIUS) |
| VLAN Pooling | |
| Port-based | |
| 802.1x | Authenticator & Supplicant |
| Tunnel | GRE, Soft-GRE |
| Policy Management Tools | Application Recognition and Control |
| Access Control Lists | |
| Device Fingerprinting | |
| Rate Limiting | |
| URL Filtering | |
| IoT Capable | Intelgrated BLE and Zigbee (1 radio, selectable) |
| PHYSICAL INTERFACES | |
| Ethernet | One 100M/1/2.5/5G Ethernet (PoE) port and one 10M/ 100M/1G Ethernet port |
| Power over Ethernet (802.3af/at/bt) with Category 5e (or better) cable | |
| LLDP support | |
| USB | 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | 23.3cm (L), 23.3cm (W), 4.8cm (H) |
| 9.2in (L) x 9.2in (W) x 1.9in (H) | |
| Weight | 1.09kg |
| 2.40lbs | |
| Mounting | Wall, acoustic ceiling, desk |
| Bracket (902-0120-0000) | |
| Physical Security | Hidden latching mechanism |
| Secure bracket (sold separately) (902-0120-0000) | |
| Operating Temperature | 0ºC (32ºF) to 50ºC (122ºF) |
| Operating Humidity | Up to 95%, non-condensing |
Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
