Thiết bị Wireless Network Controller Ruckus SmartZone 144.
| Model | Ruckus SmartZone 144 |
| Capacity | |
| Managed APs | · Up to 2,000 per controller · Up to 6,000 per cluster |
| Managed Switches | · Up to 400 per controller · Up to 1200 per cluster |
| WLANs | · Up to 2,048 |
| VLANS | · Up to 4,096 |
| Concurrent Devices | · Up to 40,000 per controller · Up to 120,000 per cluster |
| Key Functionality SmartZone 144 | |
| Device Management | · RUCKUS Wi-Fi APs supported: R850, R750, R730, R720, R710, R650, R610, R550, R510, R320, R310, M510, H510, C110, H320, E510, T811CM, T750, T750SE, T710, T710S, T610, T610S, T504, T310, T301, FZM300, FZP300 · RUCKUS ICX 700 series switches running FastIron 8.0.80 and above supported; FastIron 80.0.90a required for Zero-Touch Provisioning |
| Device Type Support | · Wi-Fi APs, Switches |
| Controller Expansion | · Up to 4 controllers in N+1 active-active mode, supporting non-disruptive capacity expansion |
| Controller Redundancy | · 3+1 distributed data preserving with N+1 redundancy within a cluster |
| Data Offload | · Local offload of traffic directly to the Internet |
| AP | · WPA, WPA2-AES, 802.11i, 802.1x/EAP, PSK, WISPr, WEP, WPA3, Enhanced Open, MAC Address · Fast EAP-SIM re-authentication · EAP-SIM, EAP-AKA, EAP-AKA over WLAN for 802.1x · Wi-Fi Locations with the SZ AAA-Proxy functionality enabled |
| User Database | · Internal database up to 25,000 users · External: RADIUS, LDAP, Active Directory |
| Access Control | · L2 (MAC address-based) L3/4 (IP and Protocol based) · L2 client isolation · Management interface access control · Time-based WLANs · Device type access policies · Two-factor authentication password, SMS |
| Wireless Intrusion Detection (WIDS/WIPS) | · Rogue AP detection / prevention · Evil-twin/AP spoofing detection · Ad hoc detection |
| AAA | · RADIUS (primary and backup) |
| Hotspot | · WISPr, Wi-Fi CERTIFIED, Passpoint™, HotSpot 2.0* |
| Guest Access | · Supported |
| Captive Portal | · Supported |
| Mesh | · Self-healing, Self-forming, Zero-touch provisioning |
| Media | · 802.11e/WMM, U-APSD, Wi-Fi Calling Prioritization* |
| mDNS Bonjour Fencing | · Supported |
| WISPr | · WISPr authentication, SZ downlink AP Survivability* |
| Software Queues | · Per traffic type (4), per client |
| SmartCast Traffic Classification | · Automatic, heuristics and TOS based or VLAN-defined |
| Rate Limiting | · Supported |
| WLAN Prioritization | · Supported |
| Client Load Balancing | · Automatic |
| Band Load Balancing | · Supported |
| AP Provisioning | · L3 or L2 auto-discovery · Auto-software upgrade · Automatic channel optimization |
| Configuration Management | · Secure multi-operator login (RBAC) · Large scale (bulk) AP management tools · Switch software and firmware upgrades · Switch configuration management · Per zone firmware versioning control · Configuration audit trails · Alarm and event notification (SNMP V1 / V2 / V3) · Event Logging (Syslog) · Integrated on-board remote accessible EMS functionality · RESTful APIs (JSON) · Web-UI · CLI |
| Physical Characteristics SmartZone 144, SmartZone 144 | |
| Power | · (FRU Option) AC hot-swappable power supply · AC power consumption: 135W · Power Rating: 100-127VAC/200-240VAC, 47-63HZ |
| Dimensions | · 1RU rack mountable: 435 mm (W) x 522 mm (D) x 44 mm (H); 17.13 in (W) x 20.55 in (D) x 1.73 in (H) |
| Weight | · 6.97 kg, 15.37 lb |

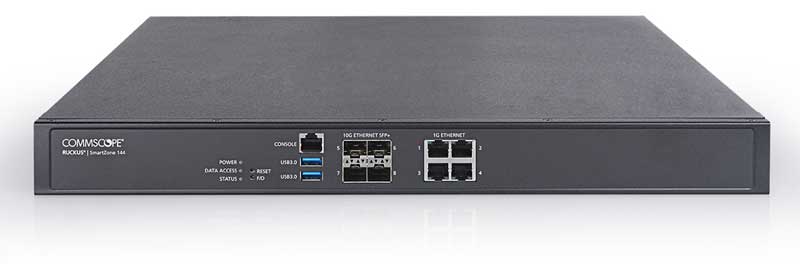

| Connections | · 4 – 1GbE ports · 4 – 10GbE ports |
| LED | · Front panel LEDs, one rear LED |

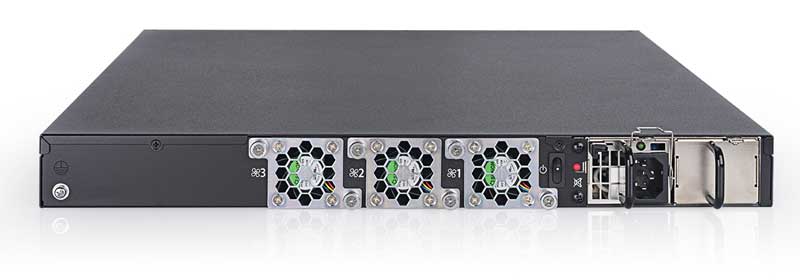

| Fans | · Three (Field-Swappable fans FRU 902-S120-0000) |
| Mean-Time-Between-Failure (MTBF) | · At 25C: 167,007 hours · With 2x fans and 1x AC power supply unit |
| Environmental Conditions | · Operating Temperature: 0°C (32°F) – 40°C (104°F) · Operating Humidity: 5% to 95%, noncondensing · Humidity storage: 95%, non-condensing |
