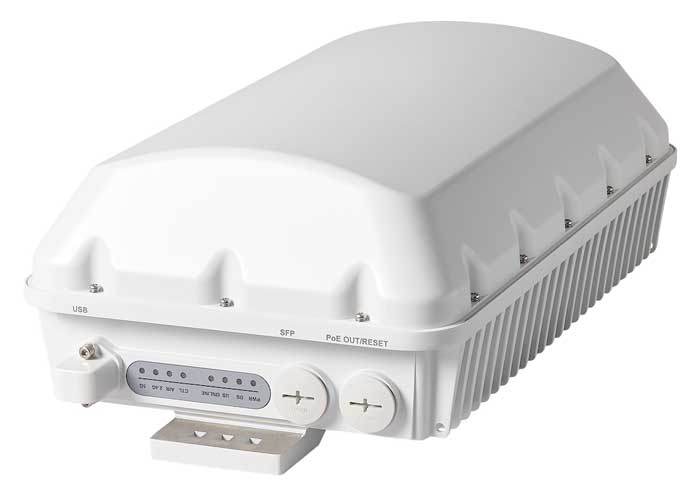

Thiết bị Wi-Fi Outdoor Access Point Ruckus T811-CM
| Model | Ruckus T811-CM |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | · 802.11ac: 6.5 to 1733 Mbps · 802.11n: 6.5 to 600Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 4×4 |
| Spatial Streams | · 4 streams SU/MU |
| Radio Chains and Streams | · 4×4:4 |
| Channelization | · 20, 40, 80, 160MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802,11r/k/v · Hotspot, Hotspot 2.0 · Captive Portal · WISPr |
| RF | |
| Antenna Type | · BeamFlex+ adaptive antennas · Polarization: 2 Vertical & 2 Horizontal |
| Antenna Gain (max) | · 3dBi for both 2.4GHz and 5GHz |
| Peak Transmit Power (aggregate across MIMO chains) | · 2.4GHz: 28dBm · 5GHz: 30dBm |
| Minimum Receive Sensitivity | · 2.4GHz: -102dBm · 5GHz: -96dBm |
| Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 600Mbps |
| Client Capacity | · Up to 512 clients per AP |
| SSID per radio | · Up to 32 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex+ · Polarization Diversity with Maximal Ratio Combining (PD MRC) |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Airtime Fairness · Airtime-based WLAN · Prioritization |
| Queuing and Scheduling | · SmartCast |
| Mobility | · SmartRoam |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q · BSSID-based (16 BSSIDs / radio) · Port-based · Dynamic, per user based on RADIUS |
| 802.1x | · Wired & wireless authenticator & Supplicant |
| Tunnel | · RUCKUS GRE, softGRE |
| Policy Management Tools | · Application Visibility and Control · Access Control Lists · Device Fingerprinting |
| IoT Capable | · Yes |
| PHYSICAL INTERFACES | |
| Ethernet | · 1 x 1GbE port PoE-out (802.3at), RJ-45 |
| USB | · 1 USB 2.0 port, Type A |
| Fiber | · SFP, 1Gbps, EPON, 1000BASE-lx |
| Cable Modem | · Type F, DOCSIS 3.1 |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 44.2 (L) x 24.98 (W) x 15.43 (H) cm · 17.4 (L) x 9.84 (W) x 6.07 (H) in |
| Weight | · 7.15kg (15.73lbs) |
| Ingress Protection | · IP-67. ASTM B117 (Salt Spray) |
| Mounting | · Strand |
| Operating Temperature | · -40ºC (-40ºF) to 65ºC (149ºF) |
| Operating Humidity | · Up to 95%, non-condensing |
Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
