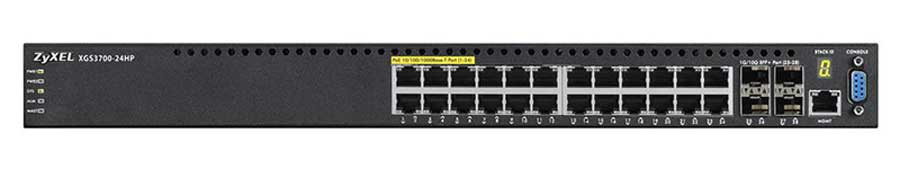

24-port GbE L2+ PoE Switch with 10GbE Uplink Zyxel XGS3700-24HP.
Model | XGS3700-24HP | |
Product name | 24-port GbE L2+ PoE Switch with 10GbE Uplink | |
Switch class | Layer 2 Plus (Layer 3 Lite) | |
Port Density | ||
Total port count | 28 | |
100/1000 Mbps | – | |
100/1000 Mbps PoE | 24 | |
10-Gigabit SFP+ | 4 | |
Stacking | ✔ | |
Performance | ||
Switching capacity (Gbps) | 128 | |
Forwarding rate (Mpps) | 95 | |
Packet buffer (byte) | 2 M | |
MAC address table | 16 K | |
L3 forwarding table | Max. 1 K IPv4 entries; Max. 512 IPv6 entries | |
Static route | 64 | |
IP interface | 128 | |
Power | ||
Input | 100-240V, 50/60Hz | |
Max. power consumption (watt) | – Single PSU 534.3 W – Dual PSU 1,098.5 W |
|
Total PoE power budget (watt) | – Single PSU 460 W – Dual PSU 1,000 W |
|
Redundant power supply | ✔ (optional) | |
Physical Specifications | ||
Item Dimensions (WxDxH) (mm/in.) | 440 x 437 x 40/ 17.32 x 17.2 x 1.57 | |
Item Weight (kg/lb.) | 7.55/ 16.64 | |
Removable power/fan module | ✔ /✔ | |
Included accessories | – Power cord – Rack mounting kit |
|
Environmental Specifications XGS3700-24HP | ||
Operating | Temperature | 0°C to 50°C (32°F to 122°F) |
Humidity | 10% to 95% (Non-condensing) | |
Storage | Temperature | -40°C to 70°C (-32°F to 158°F) |
Humidity | 10% to 90% (Non-condensing) | |
MTBF (hr) | 220,000 | |
Heat dissipation (BTU/hr) | – Single PSU 1,821 – Dual PSU 3,745.9 |
|
Acoustic noise @25°C | 53.3 dBA |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
Để cập nhật thông tin giá Thiết bị mạng ZYXEL mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
