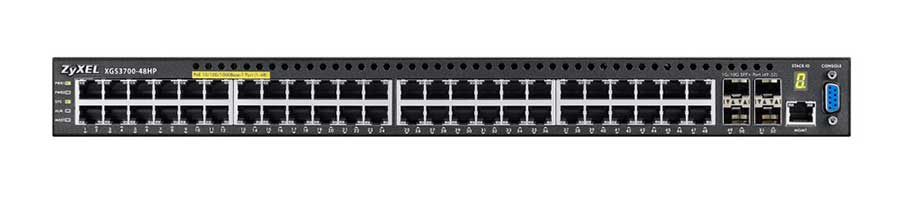

48-port GbE L2+ PoE Switch with 10GbE Uplink Zyxel XGS3700-48HP.
| Model | XGS3700-48HP | |
| Product name | 48-port GbE L2+ PoE Switch with 10GbE Uplink | |
| Switch class | Layer 2 Plus (Layer 3 Lite) | |
| Port Density | ||
| Total port count | 52 | |
| 100/1000 Mbps | – | |
| 100/1000 Mbps PoE | 48 | |
| 10-Gigabit SFP+ | 4 | |
| Stacking | ✔ | |
| Performance | ||
| Switching capacity (Gbps) | 128 | |
| Forwarding rate (Mpps) | 131 | |
| Packet buffer (byte) | 2 M | |
| MAC address table | 16 K | |
| L3 forwarding table | Max. 1 K IPv4 entries; Max. 512 IPv6 entries | |
| Static route | 64 | |
| IP interface | 128 | |
| Power | ||
| Input | 100-240V, 50/60Hz | |
| Max. power consumption (watt) | – Single PSU 556.7 W – Dual PSU 1,121.3 W |
|
| Total PoE power budget (watt) | – Single PSU 460 W – Dual PSU 1,000 W |
|
| Redundant power supply | ✔ (optional) | |
| Physical Specifications XGS3700-48HP | ||
| Item Dimensions (WxDxH) (mm/in.) | 440 x 437 x 40/ 17.32 x 17.2 x 1.57 | |
| Item Weight (kg/lb.) | 8.02/ 17.68 | |
| Removable power/fan module | ✔ /✔ | |
| Included accessories | – Power cord – Rack mounting kit |
|
| Environmental Specifications | ||
| Operating | Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 10% to 95% (Non-condensing) | |
| Storage | Temperature | -40°C to 70°C (-32°F to 158°F) |
| Humidity | 10% to 90% (Non-condensing) | |
| MTBF (hr) | 200,000 | |
| Heat dissipation (BTU/hr) | – Single PSU 1,898.3 – Dual PSU 3,823.6 |
|
| Acoustic noise @25°C | 53.6 dBA | |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
Để cập nhật thông tin giá Thiết bị mạng ZYXEL mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
