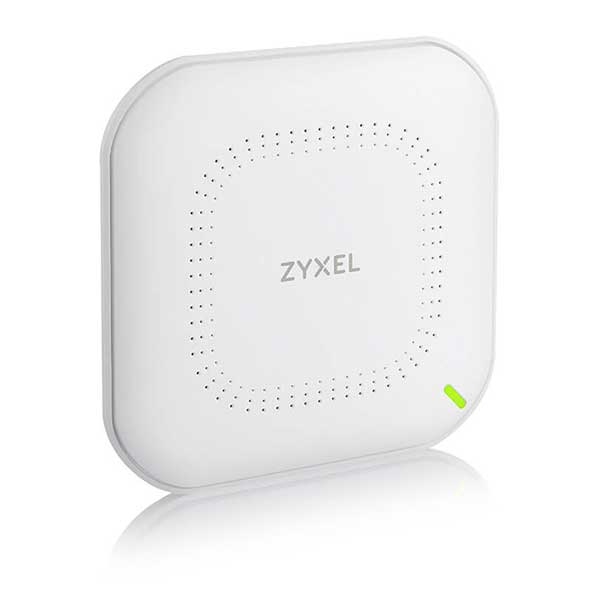

802.11ac Wave 2 Dual-Radio Ceiling Mount PoE Access Point ZyXEL NWA1123ACV3.
802.11ac Wave 2 Dual-Radio Ceiling Mount PoE Access Point ZyXEL NWA1123ACV3.| Model | NWA1123ACV3 |
| Wireless | |
| Standard | IEEE802.11 ac/n/g/b/a |
| MIMO | MU-MIMO |
| Wireless speed | – 2.4 GHz: 300Mbps – 5 GHz: 866Mbps |
| Frequency band | – 2.4 GHz: 2.412 to 2.472 GHz – 5 GHz: 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| Bandwidth | 20-, 40- and 80-MHz |
| Conducted typical transmit output power | 19/23dBm |
| RF Design | |
| Antenna type | 2×2 MIMO Embedded Antenna |
| Antenna gain | – 2.4 GHz: 3 dBi – 5 GHz: 4 dBi |
| Minimum receive sensitivity | up to -99 dBm |
| WLAN feature NWA1123ACV3 | |
| Band Steering | Yes |
| WDS/ Mesh | Yes |
| Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
| DCS | Yes |
| Load balancingLoad balancing | Yes |
| Security | |
| encryption | WEP/ WPA/WPA2-PSK/WPA3 |
| authentication | WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication |
| Access management | L2-isolation/ MAC filtering |
| Networking | |
| IPv6 | Yes |
| VLANs | Yes |
| WMM | Yes |
| U-APSD | Yes |
| DiffServ marking | Yes |
| Management NWA1123ACV3 | |
| Operating mode | Cloud managed/ standalone |
| ZON Utility | – Discovery of Zyxel switches, APs and gateways – Centralized and batch configurations + IP configuration + IP renew + Device reboot + Device locating + Web GUI access + Firmware upgrade + Password configuration |
| Zyxel Wireless Optimizer | – WiFi AP planning – WiFi coverage detection – Wireless health management |
| Web UI/ CLI | Yes |
| SNMP | Yes |
| Physical Specifications | |
| Dimensions (WxDxH) | 140 x 140 x 37.5 mm |
| Weight | 249kg |
| Included accessories | Power adapter Ceiling-mount plate |
| Physical Interfaces | |
| Ethernet port | 1x 10/100/1000M LAN |
| Power | – Input: AC 100 – 240V – 50/60 Hz 0.3A; Output: DC +12V 1A – PoE (802.3af): power draw 11 W |
| Environmental Specifications | |
| Operating Temperature | 0°C to 50°C/ 32°F to 122°F |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -40°C to 70°C/-40°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
