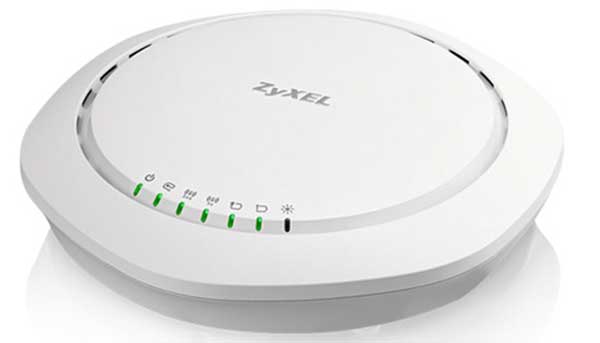

Thiết bị Wireless Zyxel WAC6503D-S.
Thiết bị Wireless Zyxel WAC6503D-S.| Model | WAC6503D-S |
| RF Specifications | |
| Frequency band | 2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz Taiwan (TW): 2.412 to 2.462 GHz |
| 802.11n/ac premium features | 3×3 Multiple-Input Multiple-Output (MIMO) with three spatial streams Maximal Ratio Combining(MRC) 20-, 40- and 80-MHz channels Packet aggregation:A-MPDU (Tx/Rx), A-MSDU(Tx/Rx) Cyclic Delay Diversity (CSD)support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check(LDPC) support |
| Conducted typical transmit output power (dBm) | FCC 11b/g : 29 FCC 11g/n : 29 FCC 11a : 30 FCC 11n/a (ac) : 30 EU 11b/g : 15 EU 11g/n : 15 EU 11a : 23 EU 11n/a (ac) : 23 |
| Number of antenna | 6 embedded smart antenna |
| Antenna gain | 4 dBi @2.4 GHz 6 dBi @5 GHz |
| Support data rate | 802.11a/g: 6, 9, 12, 18, 24, 36,48, and 54 Mbps 802.11b: 1, 2, 5.5 and 11 Mbps 802.11n: up to 450 Mbps in MCS23 (40 MHz) 802.11ac: up to 1300 Mbps in MCS9 (80 MHz) |
| Receive sensitivity | Min. Rx sensitivity up to -102 dBm |
| Interfaces | |
| Number of 10/100/1000M LAN | 2 |
| Console port | RJ-45 serial |
| PoE | Yes |
| PoE power draw | 17.04W |
| WLAN Features | |
| WLAN maximum throughput | Up to 900 Mbps |
| Mesh AP (By license) | Yes |
| Mesh AP for multiple SSID with VLAN | Yes |
| Fast roaming | Pre-authentication PMK caching and 802.11r/k/v |
| Wireless Security WAC6503D-S | |
| WEP | Yes |
| WPA/WPA2-PSK | Yes |
| WPA/WPA2-Enterprise | Yes |
| EAP types | EAP-TLS, EAP-TTLS, EAPPEAP,EAP-FAST, EAP-AKA and EAP-SIM |
| IEEE 802.1X | Yes |
| Number of SSID | 16 |
| Web authentication*2 | Yes |
| MAC filtering | Yes |
| Layer-2 isolation | Yes |
| RADIUS authentication | Yes |
| Microsoft AD authentication*2 | Yes |
| LDAP authentication*2 | Yes |
| MAC authentication*2 | Yes |
| Rogue AP detection | Yes |
| Rogue AP containment | Yes |
| Network | |
| IPv6 host | Yes |
| VLANs | Yes |
| DHCP client | Yes |
| QoS | |
| WMM | Yes |
| WMM power save | Yes |
| DiffServ marking | Yes |
| Management WAC6503D-S | |
| ZON Utility | Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration Device reboot Device reboot Firmware upgrade IP renew Device locating Device factory reset Device reboot Web GUI access One-click quick association with Zyxel AP Configurator (ZAC) |
| Smart Connect | Neighbor device discovery One-click remote management access to the neighboring Zyxel devices |
| Zyxel AP Configurator | Batch AP configuration Batch AP firmware upgrade Batch AP profile backup |
| Zyxel Wireless Optimizer | WiFi AP planning WiFi coverage detection Wireless health management |
| Standalone AP mode | Yes |
| Managed AP mode | Yes |
| CLI | Yes |
| Web UI | Yes |
| SNMP | v2c/v3 |
| Others WAC6503D-S | |
| Plenum rating | Yes |
| Kensington lock support | Yes |
| Input power | DC input: 12VDC 2A; PoE: 802.3at compliant (Power adapter is sold separately) |
| MTBF (hr) | 1,202,489 |
| Physical Specifications WAC6503D-S | |
| Item | Dimensions (WxDxH)(mm/in.) 236 x 227 x 62/9.28 x 8.95 x 2.43 Weight (g/lb.) 982/2.17 |
| Packing | Dimensions (WxDxH)(mm/in.) 308 x 323 x 127/12.13 x 12.72 x 5.00 Weight (g/lb.) 1743/3.85 |
| Included accessories | Ceiling mount plate Mounting screws |
- Xuất xứ: Trung Quốc
- Bảo hành: 36 tháng.
Để cập nhật thông tin giá Thiết bị mạng ZYXEL mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
