AX6600 Tri-Band Wi-Fi 6 Router TP-LINK Archer AX90:
- Faster AX6600 Tri-Band Wi-Fi – 4804Mbps (5GHz) + 1201Mbps (5GHz) + 574Mbps (2.4GHz).

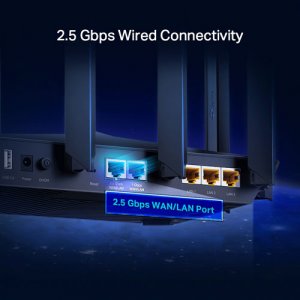

- Ultra Connectivity – 1× 2.5Gbps WAN/LAN port + 1× 1Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
- Maximized Coverage – Eight high-gain antennas equipped with Beamforming ensure vast coverage.
- More Devices with Less Lag – OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
- TP-Link HomeCareTM – Enhanced security defends against the latest cyber threats.
- Powerful CPU – 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
- Refined Security-WPA3 reinforces Wi-Fi encryption for improved security.
Specifications
| Model | Archer AX90 |
| WIRELESS | |
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5GHz IEEE 802.11ax/n/b/g 2.4GHz |
| WiFi Speeds | 5GHz: 4804 Mbps (802.11ax) 5GHz: 1201 Mbps (802.11ax) 2.4GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses: 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE Archer AX90 | |
| Processor | 1.5GHz Quad-Core CPU |
| Ethernet Ports | 1× 2.5Gbps WAN/LAN Port 1× 1Gbps WAN/LAN Port 3× 1Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V/ 3.3 A |
| SECURITY Archer AX90 | |
| WiFi Encryption | WPA WPA2 WPA/WPA2-Enterprise (802.1x) WPA3 |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| HomeShield Security | Home Network Scanner |
| Guest Network | 1× 5GHz-1 Guest Network 1× 5GHz-2 Guest Network 1× 2.4GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE Archer AX90 | |
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield |
| OneMesh | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls | Custom Profiles URL Filtering Time Limit Time Schedule (Bedtime) Log Insight Monthly/Weekly Report |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| PHYSICAL Archer AX90 | |
| Dimensions (W×D×H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |

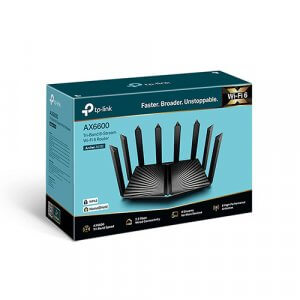

| Package Contents | Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER Archer AX90 | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity | 2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-1: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm |
- Bảo hành: 12 tháng.
Để cập nhật thông tin giá Thiêt Bị Mạng Tp-Link mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 hoặc Fanpage để được hỗ trợ tốt nhất.
