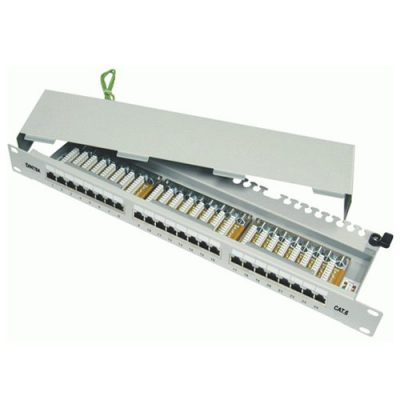

Patch panel 24 port Dintek, CAT.6 Fully Shielded 1402-04033

Patch panel 24 port Dintek, CAT.6 Fully Shielded 1402-04033:

Features

• High performance, exceeds ANSI/TIA-568-C.2 Category 6 Hardware transmission performance.
• 100% shielded for complete EMI/RFI protection.
• 19 inch 24port patch panel, 1U size.
• 110 and Krone dual type IDC termination.
• Accepts 22-26AWG, Stranded or solid wire.
• Wiring: T568A/B.
• Electrical
• Insulation resistance: 500 Mega ohms min.
• Dielectric with standing voltage: 1,000 Volts, RMS, 60Hz, 1min.
• Contact resistance: 20 milli ohms max.
• Current rating: 1.5 AMPS at 20°C.

Physical

• Housing: High-impact, fl ame-retardant plastic, UL94V-0 rated.
• Material: Phosphor Bronze Alloy.
• Plating: 50u” gold plated over 100u” nickel.
• Sheel: Brass alloy plated with 100u” nickel.
• Plate: SPCC-SD 16G.

Mechanical

• Total mating force: 800 grams for a 8 wire leads min.
• Retention: 30 lbs min between the jack and plug.
• Insertion/Extraction life: 750 cycles min.
• Number of IDC terminations: 200 cycles min.

Applications

• Voice; T1; ISDN
• 10BASE-T (IEEE 802.3)
• 16Mbps Token Ring (IEEE802.5)
• 100VG-AnyLAN (IEEE802.12)
• 100BASE-T Ethernet (IEEE802.3)
• 155/622Mbps 1.2/2.4 Gbps ATM
• 1000Mbps Gigabit Ethernet
• 550MHz Broadband Video

Standards

• UL Verified
• ISO/IEC11801 2nd edition
• ANSI/TIA Standard 568-C.2
• CENELEC EN 50173

Made in Taiwan
