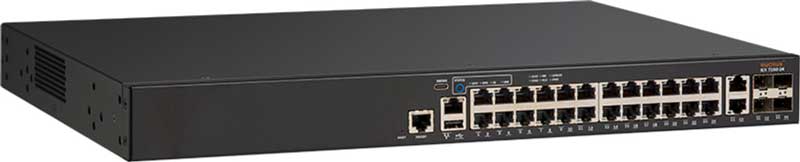

Thiết Bị Mạng Ruckus ICX 7150 24 Ports Switch With 1 GBE Uplinks ICX7150-24-4X1G.
| Performance and Scalability | |
| Switching capacity (data rate, full duplex) | 132 Gbps |
| Forwarding capacity (data rate, full duplex) | 98 Mpps |
| 10/100/1000 Mbps RJ45 downlinks | 24 |
| 10/100/1000 Mbps RJ45 uplinks (full duplex only, no PoE) | 2 |
| 1/10 Gbps SFP/SFP+ uplinks | 4 (with license) |
| PoE/PoE+ ports | – |
| Maximum PoE Class 3 ports (15.4 W per port) | – |
| Maximum PoE+ Class 4 ports (30 W per port) | – |
| Base IPv4/v6 Layer 3 routing (static routing, RIP) | Yes |
| Advanced IPv4/v6 Layer 3 routing (OSPF, VRRP, PIM, PBR features) | With license |
| Aggregated stacking bandwidth (data rate, full duplex) | 480 Gbps |
| Stacking density (maximum switches in a stack) | 12 |
| Stacking ports (maximum ports usable for stacking) | Up to 4×10 GbE SFP+ |
| Maximum stacking distance (distance between stacked switches) | 10 km |
| Campus Fabric | Fabric Port Extender (PE) |
| Power Ruckus ICX 7150 | |
| Power inlet (AC) | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz |
| Power supply rated maximum (AC) | 36 W |
| PoE power budget (AC) | – |
| Switch power consumption (25°C) Idle (no PoE load) 10% traffic (full PoE load) 100% traffic (full PoE load) |
14 W 24 W 24 W |
| Airflow | Fanless |
| Switch heat dissipation (25°C) Idle (no PoE load) 10% traffic (full PoE load) 100% traffic (full PoE load) |
47 BTU/hr 81 BTU/hr 82 BTU/hr |
| ENVIRONMENT Ruckus ICX 7150 | |
| Net Weight (Kg) | 3.8 |
| Dimensions (mm) | 440 (W) x 280 (D) x 43.65 (H) |
| Acoustics (25°C, min fan speed) | Fanless |
| MTBF (25°C) | 871,931 hours |
| SPECIFICATIONS Ruckus ICX 7150 | |
| Connector options | • 10/100/1000 Mbps RJ-45 • 1 Gbps SFP ports • 1/10 Gbps SFP+ ports • Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 • Console management: RJ45 serial port and USB Type-C port with serial communication device class support • File transfer: USB port, standard-A plug |
| DRAM | 1 GB |
| NVRAM (Flash) | 2 GB |
| Packet buffer size | 12/24 port: 2 MB, 48 port: 4 MB |
| Maximum MAC addresses | 16,384 |
| Maximum VLANs Maximum PVLANs |
• 4,095 • 32 |
| Maximum STP (spanning trees instances) | 254 |
| Maximum VEs | 128 |
| Maximum ARP entries | 4,094 |
| Maximum routes (in hardware) | • 1,000 (IPv4), 1,000 (IPv6) • Next hop address: 4,094 |
| Trunking | • Maximum ports per trunk: 16 • Maximum trunk groups: 128 |
| Maximum jumbo frame size | 9,216 bytes |
| QoS priority queues | 8 per port |
| Multicast groups | • 3,072 (Layer 2) • 2,048 (Layer 3) |
| Quality of Service (QoS) | • ACL Mapping and Marking of ToS/DSCP (CoS) • ACL Mapping and Marking of 802.1p • ACL Mapping to Priority Queue • Classifying and Limiting Flows Based on TCP Flags • DiffServ Support • Honoring DSCP and 802.1p (CoS) • MAC Address Mapping to Priority Queue • Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP |
| Traffic management | • ACL-based inbound rate limiting and traffic policies • Broadcast, multicast, and unknown unicast rate limiting • Inbound rate limiting per port • Outbound rate limiting per port and per queue |
| Security | • 802.1X authentication • MAC authentication • Flexible authentication • Web authentication • DHCP snooping • Dynamic ARP inspection • Neighbor Discovery (ND) Inspection • Bi-level Access Mode (Standard and EXEC Level) • EAP pass-through support • IEEE 802.1X username export in sFlow • Protection against Denial of Service (DoS) attacks • Authentication, Authorization, and Accounting (AAA) • MAC Address Locking MAC Port Security • Advanced Encryption Standard (AES) with SSHv2 • RADIUS/TACACS/TACACS+ • Secure Copy (SCP) • Secure Shell (SSHv2) • Protected Ports • Local Username/Password • Change of Authorization (CoA) RFC 5176 • Trusted Platform Module • RADSEC (RFC 6614) • Encrypted Syslog (RFC 5425) |
| SDN features | • OpenFlow v1.0 and v1.3 • OpenFlow with hybrid port mode • Operates with an OpenDayLight Controller |
| High availability | • Layer 3 VRRP/VRRP-E protocol redundancy • Real-time state synchronization across the stack • Hitless failover and switchover from master to standby stack controller • Hot insertion and removal of stacked units • Layer 2 VSRP switch redundancy • In Service Software Update (ISSU) |
| FEATURE SETS Ruckus ICX 7150 | |
| Layer 2 feature set | • 802.1s Multiple Spanning Tree • 802.1x Authentication • Auto MDI/MDIX • BPDU Guard, Root Guard • Dual-Mode VLANs • MAC-based VLANs, Dynamic MAC-based VLAN activation • Dynamic VLAN Assignment • Dynamic Voice VLAN Assignment • Fast Port Span • GVRP: GARP VLAN Registration Protocol • IGMP Snooping (v1/v2/v3) • IGMP Proxy for Static Groups • IGMP v2/v3 Fast Leave • Inter-Packet Gap (IPG) adjustment • Link Fault Signaling (LFS) • MAC Address Filtering • MAC Learning Disable • MLD Snooping (v1/v2) • Multi-device Authentication • Per-VLAN Spanning Tree (PVST/PVST+/PRST) • Mirroring: Port-based, ACL-based, MAC Filter-based, and VLAN-based • PIM-SM v2 Snooping • Port Loop Detection • Private VLAN • Remote Fault Notification (RFN) • Single-instance Spanning Tree • Trunk Groups (static, LACP) • Uni-Directional Link Detection (UDLD) • Metro-Ring Protocol (MRP) (v1, v2) • Virtual Switch Redundancy Protocol (VSRP) • Q-in-Q and selective Q-in-Q • VLAN Mapping • Topology Groups |
| Base Layer 3 IP routing feature set | • IPv4 and IPv6 static routes • RIP v1/v2, RIPng • ECMP • Port-based Access Control Lists • Layer 3/Layer 4 ACLs • Host routes • Virtual Interfaces • Routed Interfaces • Route-only Support • Routing Between Directly Connected Subnets |
| Premium Layer 3 IP routing feature set with software license | • IPv4 and IPv6 dynamic routes • OSPF v2, v3 • PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4, IPv6) • PBR Virtual Route Redundancy Protocol VRRP (IPv4) • VRRP v3 (IPv6) • VRRP-E(IPv4/IPv6) |
| STANDARD COMPLIANCE Ruckus ICX 7150 | |
| IEEE standards compliance | • 802.1AB LLDP/ LLDP-MED • 802.1D MAC Bridging • 802.1p Mapping to Priority Queue • 802.1s Multiple Spanning Tree (MST) • 802.1w Rapid Reconfiguration of Spanning Tree (RSTP) • 802.1x Port-based Network Access Control (PNAC) • 802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD) • 802.3ab 1000BASE-T • 802.3 10Base-T • 802.3ad Link Aggregation (Dynamic and Static) • 802.1 AX-2008 Link Aggregation • 802.3ae 10 Gigabit Ethernet • 802.3af Power over Ethernet • 802.3at Power over Ethernet Plus • 802.3bz Multigigabit Ethernet • 802.3u 100Base-TX • 802.3x Flow Control • 802.3z 1000Base-SX/LX • 802.3 MAU MIB (RFC 2239) • 802.1Q VLAN Tagging • 802.1BR Bridge Port Extension • 802.3az Energy Efficient Ethernet* (hardware ready) |
| ENVIRONMENT Ruckus ICX 7150 | |
| Temperature | Operating temperature: -5°C to 45°C Storage temperature: −25°C to 70°C |
| Humidity | Operating relative humidity: 5% to 95% at 45°C, non-condensing Non-operating relative humidity: 0% to 95% at 70°C, non-condensing |
| Altitude | Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum |
| COMPLIANCE/CERTIFICATION Ruckus ICX 7150 | |
| Electromagnetic emissions | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) |
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems |
| Immunity | EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags |
| Environmental regulatory compliance | RoHS-compliant (6 of 6); WEEE-compliant |
| Vibration | IEC 68-2-36, IEC 68-2-6 |
| Shock and drop | IEC 68-2-27, IEC 68-2-32 |
Để cập nhật thông tin giá Thiết bị mạng RUCKUS mới nhất, quý khách hàng vui lòng liên hệ Hotline 0902 553 573 – 0978 68 88 78 hoặc Fanpage để được hỗ trợ tốt nhất.
