Ruckus ICX 7450 Product Family.

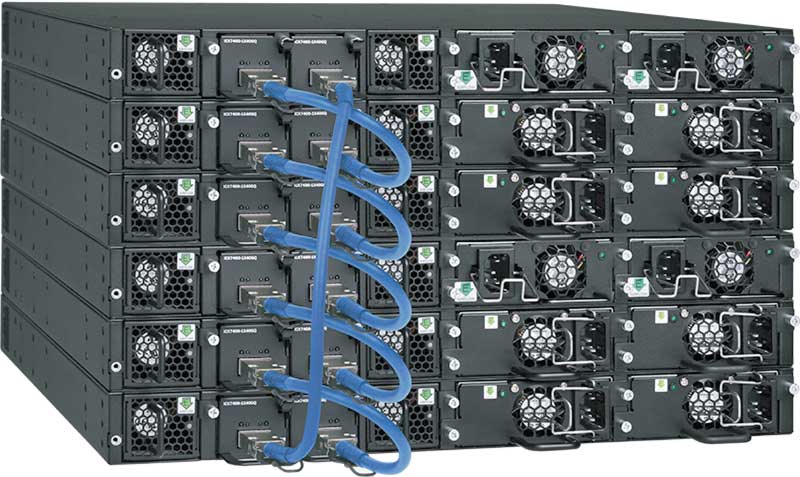

Up to 12 RUCKUS ICX 7450 switches can be stacked together using two full-duplex QSFP+ 40 Gbps ports that provide a fully redudant backplane with 960 Gbps of stacking bandwidth

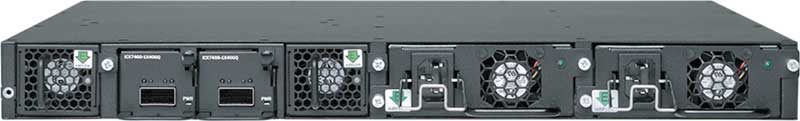

RUCKUS ICX 7450 rear view shown with two optional RUCKUS ICX7400-1X40GQ QSFP+ uplink/stacking modules, two AC power supplies, and two fan trays.

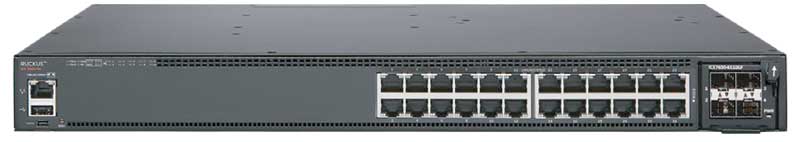

Ruckus ICX 7450-24 Switch: 24×10/100/1000 Mbps RJ-45 ports

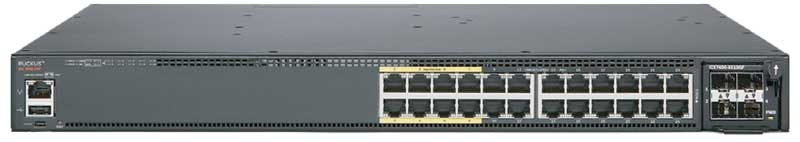

Ruckus ICX 7450-24P Switch: 24×10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH, IEEE 802.3bt ready ports (90W)

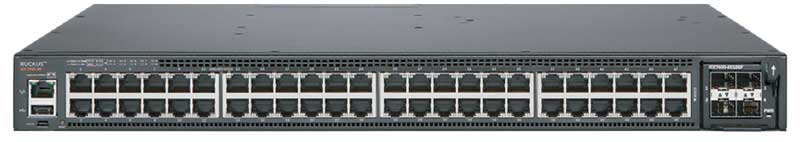

Ruckus ICX 7450-48 Switch: 48×10/100/1000 Mbps RJ-45

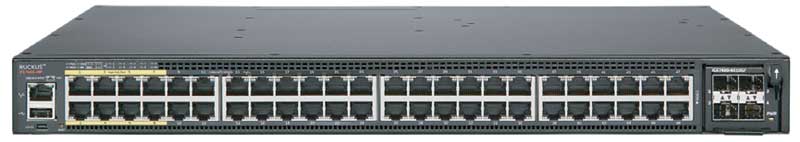

Ruckus ICX 7450-48P Switch: 48×10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH, IEEE 802.3bt ready ports (90W)

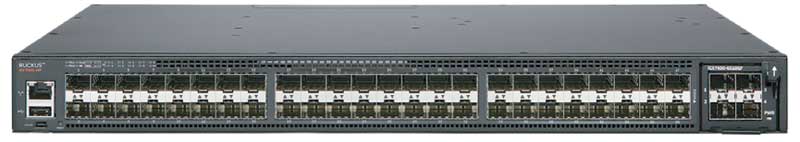

Ruckus ICX 7450-48F Switch: 48×100/1000 Mbps SFP ports
Ruckus ICX 7450 Switch Data Sheet:
| ICX 7450-24 | ICX 7450-24P | ICX 7450-32ZP | ICX 7450-48 | ICX 7450-48P | ICX 7450-48F | |
|---|---|---|---|---|---|---|
| Switching capacity (data rate, full duplex) |
288 Gbps | 288 Gbps | 328 Gbps | 336 Gbps | 336 Gbps | 336 Gbps |
| Forwarding capacity (data rate, full duplex) |
214 Mpps | 214 Mpps | 244 Mpps | 250 Mpps | 250 Mpps | 250 Mpps |
| Fixed ports: 10/100/1000 Mbps RJ-45 | 24 | 24 | 24 | 48 | 48 | – |
| Fixed ports: 100/1000 Mbps SFP | – | – | – | – | – | 48 |
| Fixed ports: 100 Mbps/1000 Mbps/ 2.5 Gbps RJ45 | – | – | 8 | – | – | – |
| Modular slots | 3 | 3 | 3 | 3 | 3 | 3 |
| Modular ports: 1 Gbps SFP (max.) |
4 | 4 | – | 4 | 4 | 4 |
| Modular ports: 1/10 Gbps SFP/SFP+ (max.) |
12 | 12 | 12 | 12 | 12 | 12 |
| Modular ports: 1/10GBASE-T (max.) |
12 | 12 | 12 | 12 | 12 | 12 |
| Modular ports: 40 GbE QSFP+ (max.) |
3 | 2 | 2 | 3 | 2 | 1 |
| Modular service: IPsec VPN | With module | With module | With module | With module | With module | With module |
| Maximum PoE Class 3 ports (15.4 W per port) |
– | 24 (1 AC PSU) | 32 (1 AC PSU) | – | 48 (1 AC PSU) | – |
| Maximum PoE+ ports (30 W per port) |
– | 24 (1 AC PSU) | 32 (2 AC PSU) | – | 48 (2 AC PSU) | – |
| Maximum PoH ports (90 W per port) |
– | 8 (1 AC PSU) | 8 (1 AC PSU) | – | 8 (1 AC PSU) | – |
| Base IPv4/v6 Layer 3 routing (static routing) |
Yes | Yes | Yes | Yes | Yes | Yes |
| Advanced IPv4/v6 Layer 3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF) |
With license | With license | With license | With license | With license | With license |
| Aggregated stacking bandwidth | 960 Gbps | 960 Gbps | 960 Gbps | 960 Gbps | 960 Gbps | 960 Gbps |
| Stacking density (maximum switches in a stack) |
12 | 12 | 12 | 12 | 12 | 12 |
| Stacking ports (maximum ports usable for stacking) |
Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ | Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ | Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ | Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ | Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ | Up to 4×10 GbE SFP+ or 2×40 GbE QSFP+ |
| Maximum stacking distance (distance between stacked switches) |
10 km | 10 km | 10 km | 10 km | 10 km | 10 km |
| Power | ICX 7450-24 | ICX 7450-24P | ICX 7450-32ZP | ICX 7450-48 | ICX 7450-48P | ICX 7450-48F |
| Power inlet (AC) | C14 | C14 | C14 | C14 | C14 | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC | |||||
| Maximum current draw (at 100 VAC, one power supply) |
13.3 Amp | 12.5 Amp | 12.5 Amp | 13.3 Amp | 12.5 Amp | 13.3 Amp |
| Power supply rated maximum (AC) | 2×250 W | 2×1,000 W | 2×1,000 W | 2×250 W | 2×1,000 W | 2×250 W |
| Power supply rated maximum output (DC) | 2×510 W | 2×510 W | 2×510 W | 2×510 W | 2×510 W | 2×510 W |
| PoE power budget (AC) (two AC power supplies) |
1,500 W | 1,500 W | 1,500 W | – | ||
| PoE power budget (DC) (two DC power supplies) |
516 W | 516 W | 516 W | – | ||
| Switch power consumption (25°C) Idle (no PoE load) 10% traffic2 (full PoE load) 100% traffic2 (full PoE load) |
63 W 64 W 69 W | 90 W 922 W 930 W | 75 W 911 W 916 W | 93 W 95 W 100 W | 106 W 930 W 935 W | 119 W 120 W 123 W |
| Airflow | Reversible, front-to-back, or back-to-front (depending on power supplies and fans installed) | |||||
| Switch heat dissipation (25°C)1, 3 Idle (no PoE load) 10% traffic2 (full PoE load) 100% traffic2 (full PoE load) |
215 BTU/hour 218 BTU/hour 235 BTU/hour |
307 BTU/hour 314 BTU/hour 330 BTU/hour |
256 BTU/hour 259 BTU/hour 276 BTU/hour |
317 BTU/hour 324 BTU/hour 341 BTU/hour |
362 BTU/hour 369 BTU/hour 386 BTU/hour |
406 BTU/hour 409 BTU/hour 420 BTU/hour |
| Environment | ||||||
| Net Weight (Kg) | 6.4 kg (14.11 lb) |
7.2 kg (15.87 lb) |
6.9 kg (15.21 lb) |
6.5 kg (14.33 lb) |
7.2 kg (15.87 lb) |
6.8 kg (14.99 lb) |
| Dimensions (mm) | 440 mm (17.323 in.) W × 393.7 mm (15.5 in.) D × 43.7 mm (1.720 in.) H; 1U | |||||
| Acoustics1 (25°C, ISO 7779) | 46 dBA | 49 dBA | 49 dBA | 47 dBA | 49 dBA | 46 dBA |
| MTBF1 (25°C) | 628,369 hours | 448,376 hours | 466,576 hours | 571,520 hours | 444,360 hours | 576,586 hours |
| Temperature | Operating temperature: −5°C to 50°C/23°F to 122°F Storage temperature: −40°C to 70°C/−40°F to 158°F |
|||||
| Humidity | Operating relative humidity: 10% to 90% at 50°C, non-condensing Non-operating relative humidity: 5% to 95% at 70°C, non-condensing |
|||||
| Altitude | Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum |
|||||
| Specifications | ||||||
| Connector options |
|
|||||
| DRAM | 2 GB | |||||
| NVRAM (Flash) | 2 GB | |||||
| Packet buffer size | 24 port: 4 MB, 48 port: 8 MB | |||||
| Maximum MAC addresses | 32,768 | |||||
| Maximum VLANs | 4,096 | |||||
| Maximum PVLANs | 32 | |||||
| Maximum STP (spanning trees instances) |
254 | |||||
| Maximum VEs | 255 | |||||
| Maximum routes (in hardware) |
|
|||||
| Trunking |
|
|||||
| Maximum jumbo frame size | 9,216 bytes | |||||
| Average latency | 1.3 µs | |||||
| QoS Priority Queues | 8 per port | |||||
| IPsec performance |
|
|||||
| Multicast Groups |
|
|||||
| VRF | 32 | |||||
| Compliance/Certification | ||||||
| Electromagnetic emissions | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker EN 61000-6-3 Emission Standard | |||||
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1; IEC60950-1; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products | |||||
| Immunity | EN 61000-6-1 Generic Immunity and Susceptibility; EN 55024 Immunity Characteristics; EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000- 4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags | |||||
| Environmental regulatory compliance | RoHS-compliant (6 of 6); WEEE-compliant | |||||
| Vibration | IEC 68-2-36, IEC 68-2-6 | |||||
| Shock and drop | IEC 68-2-27, IEC 68-2-32 | |||||
