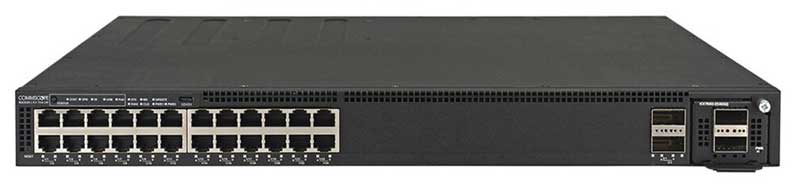

Ruckus ICX 7550-24P Gigabit Ports with POE

Vui lòng gọi

Ruckus ICX 7550-24P Gigabit Ports with POE

24-port 10/100/1000 Mbps 802.3at POE+
2-port 40 Gbps Uplink/Stack QSFP+, expansion module slot
24-PoE port 3at, up to 30W per port, up to 1900W PoE budget

Mã: ICX 7550-24P Danh mục: Thiết bị mạng RUCKUS Thẻ: ICX 7550-24, ICX 7550-24F, ICX 7550-24P, ICX 7550-24ZP, Ruckus ICX 7550-24P

Mô tả
Đánh giá (0)

Ruckus ICX 7550-24P switch specifications.

	Non-PoE Switches		Gigabit PoE		Multigigabit PoE		Fiber
	RUCKUS ICX 7550-24	RUCKUS ICX 7550-48	RUCKUS ICX 7550-24P	RUCKUS ICX 7550-48P	RUCKUS ICX 7550-24ZP	RUCKUS ICX 7550-48ZP	RUCKUS ICX 7550-24F	RUCKUS ICX 7550-48F
Switching capacity (data rate, full duplex)	368 Gbps	416 Gbps	368 Gbps	416 Gbps	800 Gbps	1,020 Gbps	1080 Gbps	912 Gbps
Forwarding capacity (data rate, full duplex)	274 Mpps	309 Mpps	274 Mpps	309 Mpps	595 Mpps	759 Mpps	803 Mpps	678 Mpps
10/100/1000 Mbps RJ45	24	48	24	48
100/1000 Mbps/2.5 Gbps RJ45 (full duplex only)					12	36
100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only)					12	12
Fixed ports: 100/1000 Mbps SFP downlinks								36
Fixed ports: 1/10 Gbps SFP/SFP+ downlinks							24	12
Modular ports: 1/10 Gbps SFP/SFP+ uplinks	4	4	4	4	4	4	4	4
40 Gbps QSFP+ uplinks (max)	4	4	4	4
40/100 Gbps QSFP28 uplinks (max)					4 x 40 or 2 x 100	4 x 40 or 3 x 100	4 x 40 or 2 x 100	4 x 40 or 3 x 100
PoE/PoE+ ports			24	48	24	48
Perpetual / Fast boot Poe ports			24	48	24	48
802.3bt (90W) ports					24	48
Base IPv4/v6 L3 routing (Static routing, RIP)	🗸	🗸	🗸	🗸	🗸	🗸	🗸	🗸
Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features)	With license	With license	With license	With license	With license	With license	With license	With license
Aggregated Stacking Bandwidth	960 Gbps		960 Gbps		2.4 Tbps		2.4 Tbps
Stacking density (Max switches in a stack)	12		12		12		12
Stacking ports (Max ports usable for stacking)	Up to 2 x 40G QSFP+		Up to 2 x 40G QSFP+		Up to 2x 100G QSFP28		Up to 2x 100G QSFP28
Max stacking distance (between stacked switches)	10 Km		10 Km		10 Km		10 Km

Non-PoE Switches		Gigabit PoE		Multigigabit PoE		Fiber
RUCKUS ICX 7550-24	RUCKUS ICX 7550-48	RUCKUS ICX 7550-24P	RUCKUS ICX 7550-48P	RUCKUS ICX 7550-24ZP	RUCKUS ICX 7550-48ZP	RUCKUS ICX 7550-24F	RUCKUS ICX 7550-48F

Power inlet

C14 (AC), Dinkle 2EHDP-03P (DC)

Input voltage/frequency

AC: 100 to 240 VAC @ 50 to 60 Hz | DC: 40 to 60 VDC

Power supply rated maximum output (AC)

2 x 400W

2 x 1030W (100-180V)

2 x 1200W (180-240V)

2 x 400W

PoE power budget (AC) (two AC power supplies)

1624 W (100-180V)

1900 W (180-240V)

1526 W

1858W

Power supply rated maximum output (DC)

2 x 400W

Switch power consumption1 (25°C)

· 10% traffic2 (no PoE load)

· 100% traffic2 (full PoE load)

53.2 W

135 W

65 W

142.7 W

68.5 W

1123.7 W

83.1 W

1131.6W

99.3 W

1152 W

139.7 W

1183.7 W

66.7 W

142.7 W

81.3 W

166.8 W

Airflow

Front-to-back, or back-to-front (depending on power supplies and fans installed)

Switch heat dissipation1,3 (25°C)

· 10% traffic2 (no PoE load)

181.4 BTU/hr

221.6 BTU/hr

233.6 BTU/hr

283.3 BTU/hr

338.6 BTU/hr

476.4 BTU/hr

227.4 BTU/hr

277.2 BTU/hr

Weight	6.11 kg 13.47 lb.		6.30 kg 13.89 lb.	6.74 kg 14.86 lb.	7.10 kg 15.65 lb.	6.98 kg 15.39 lb.		7.36 kg 16.23 lb.	6.04 kg 13.32 lb.	6.42 kg 14.15 lb.
Dimensions	Height: 4.4 cm, 1.73 inches Width: 44.00 cm, 17.32 inches Depth: 40.64 cm, 16 inches
Acoustics (at 35°C)	51 dBA		51 dBA	51 dBA	51 dBA	51 dBA		56.7 dBA	51 dBA	51 dBA
MTBF (25°C)	717,487 hours		612,791 hours	319,662 hours	304,125 hours	287,828 hours		213,665 hours	853,073 hours	532,359 hours
Features		Capabilities
Connector options		· RJ-45 ports: 10/100/1000 Mbps, 2.5/5/10 Gbps ports · SFP ports: 100 Mbps, 1 Gbps · SFP+ ports: 10 Gbps · QSFP+ ports: 40 Gbps · QSFP28 ports: 100 Gbps · RJ-45 port: Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 · Console management: USB type C (Type C plug) and RJ45 · File Transfer: USB port, standard-A plug
DRAM NVRAM (flash) Packet Buffer Size		· 4 GB · 4 GB · 8 MB
Maximum MAC addresses		16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
Maximum VLANs Maximum PVLANs		· 4095 · 256
Maximum STP (spanning trees)		· 512
Maximum VEs		· 512
Maximum routes (in hardware)		· IPV4: 97280 (profile1), 8192 (profile2), 21504 (profile 3) · IPV6: 8192 (profile1), 2048 (profile2), 17408 (profile 3)
Trunking		· Maximum ports per trunk: 32 · Maximum trunk groups: 256
Maximum jumbo frame size		· 12,288 bytes
QoS priority queues		· 10 for Unicast and Multicast traffic
Multicast Groups		· 8192
VRF		· 128 instances
Layer 2 switching		· 802.1s Multiple Spanning Tree · 802.1x Authentication · Auto MDI/MDIX · BPDU Guard, Root Guard · Dual-Mode VLANs · MAC-based VLANs, Dynamic MAC-based VLAN activation · Dynamic Voice VLAN Assignment · Dynamic VLAN Assignment · Fast Port Span · MVRP: Multiple VLAN Registration Protocol · IGMP Snooping (v1/v2/v3) · IGMP Proxy for Static Groups · IGMP v2/v3 Fast Leave · Inter-Packet Gap (IPG) adjustment · Link Fault Signaling (LFS) · MAC Address Filtering · MAC Learning Disable					· MLD Snooping (v1/v2) · Multi-device Authentication · Per-VLAN Spanning Tree (PVST/PVST+/PVRST) · Mirroring – Port-based, ACL-based, MAC Filter-based · PIM-SM v2 Snooping · Port Loop Detection · Private VLAN · Remote Fault Notification (RFN) · Single-instance Spanning Tree · Trunk Groups (static, LACP) · Uni-Directional Link Detection (UDLD) · Metro-Ring Protocol (MRP) (v1, v2) · Virtual Switch Redundancy Protocol (VSRP) · Q-in-Q and selective Q-in-Q · VLAN Mapping · Topology Groups · VXLAN*
