Ruckus ICX 7750-26Q Switch

Vui lòng gọi

Ruckus ICX 7750-26Q 26-Port 40 GbE QSFP Switch with Modular Interface Slot

Cổng mạng: 26x 40 Gigabit Ethernet QSFP+
Cổng quản lý: 1x Quản lý Gigabit, 1x Bảng điều khiển USB mini (Loại B), 1x USB (Loại A)
Công suất chuyển mạch: 2,56 Tbps
Giá đỡ : Đã bao gồm (1-RU)

Mã: ICX 7750-26Q Danh mục: Thiết bị mạng RUCKUS Thẻ: ICX 7750-26Q, ICX 7750-48C, ICX 7750-48F, Ruckus ICX 7750-26Q

Mô tả
Đánh giá (0)

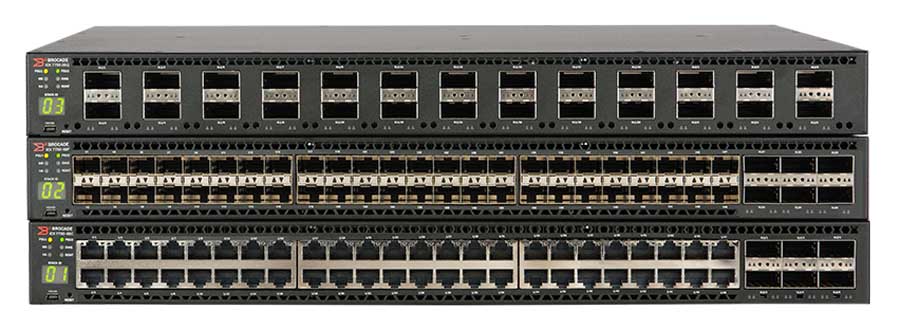

ruckus-icx-7750-26q Ruckus ICX 7750-26Q, ICX 7750-48F, ICX 7750-48C Switch

Ruckus ICX 7750-26Q Switch Specifications.

	ICX 7750-26Q	ICX 7750-48F	ICX 7750-48C
Ports	26 QSFP+ Ports	48 SFP+ Ports	48 10GBASE-T Ports
Switching capacity (data rate, full duplex)	2.56 Tbps	1.92 Tbps	1.92 Tbps
Forwarding capacity (data rate, full duplex)	1.90 Bpps	1.44 Bpps	1.44 Bpps
Fixed ports: 1/10 Gbps SFP/SFP+	–	48	–
Fixed ports: 100 Mbps, 1/10 Gbps 10GBASE-T RJ45	–	–	48
Fixed ports: 40 Gbps QSFP+	26	6	6
Modular slots	1	1	1
Modular ports: 40 Gbps QSFP+ (max.)	6	6	6
Latency	550 ns	550 ns	40 Gbps – 40 Gbps: 550 ns 10 Gbps -10 Gbps: 2.9 µs
Dynamic packet buffer size	12.2 MB	12.2 MB	12.2 MB
Base IPv4/IPv6 Layer 3 routing entitlement (Static Routing, RIP)	Yes	Yes	Yes
Advanced IPv4/v6 Layer 3 routing (OSPF, BGP, PIM, PBR, VRF)	With Certificate of Entitlement	With Certificate of Entitlement	With Certificate of Entitlement
Aggregated stacking bandwidth (data rate, full duplex)	5.76 Tbps	5.76 Tbps	5.76 Tbps
Stacking density (maximum switches in a stack)	12	12	12
Stacking ports (maximum ports usable for stacking)	Up to 12×40 GbE QSFP+ per switch	Up to 12×40 GbE QSFP+ per switch	Up to 12×40 GbE QSFP+ per switch
Maximum stacking distance (distance between stacked switches)	10 km	10 km	10 km
Power	ICX 7750-26Q	ICX 7750-48F	ICX 7750-48C
Power inlet (AC)	C14	C14	C14
Input voltage/frequency	AC: 100 to 240 VAC @ 50 to 60 Hz DC: 40 to 60 VDC
Maximum current draw	586 W	586 W	586 W
Power supply rated maximum (AC)	2×500 W	2×500 W	2×500 W
Power supply rated maximum (DC)	2×500 W	2×500 W	2×500 W
Switch power utilization1 (25°C) Typical Maximum	274 W 350 W	250 W 327 W	511 W 586 W
Switch heat dissipation1 (25°C) Typical Maximum	935 BTU/hour 1,194 BTU/hour	853 BTU/hour 1,116 BTU/hour	1,744 BTU/hour 2,000 BTU/hour
Environment
Net Weight (with 2 power supplies, 4 fans, optional 6 ports module, no transceivers)	8.83 kg (19.43 lb)	9.08 kg (19.98 lb)	10.17 kg (22.38 lb)
Dimensions	440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U)	440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U)	440 mm (17.323 in.) W 431 mm (16.97 in.) D 43.6 mm (1.730 in.) H; (1U)
Acoustics (25°C, ISO 7779)	62 dBA	62 dBA	62 dBA
MTBF(25°C)	364,061 hours – ICX 7750-26Q	353,967 hours	259,199 hours
Temperature	Operating temperature: −5°C to 45°C, 50°C at sea level (0°F to 113°F, 122°F at sea level) Non-operating temperature: −40ºC to 60ºC (−40ºF to 140ºF)		Operating temperature: 40°C at sea level (0°F to 96°F, 96°F at sea level) Non-operating temperature: −40ºC to 60ºC (−40ºF to 140ºF)
Humidity	Operating relative humidity: 10% to 90% at 50ºC (122ºF) Non-operating relative humidity: 10% to 90% at 60ºC (140ºF)		Operating relative humidity: 10% to 90% at 40ºC (104ºF) Non-operating relative humidity: 10% to 90% at 60ºC (140ºF)
Altitude	Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum
Specifications
Connector options	1002/1000 Mbps, 10 Gbps 10GBASE-T ports: RJ-45 1/10 Gbps SFP+ ports 40 Gbps QSFP+ ports Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: mini-USB serial port (Mini-B plug) RS-232 serial signals File transfer: USB port, (standard-A plug)
DRAM	8 GB
NVRAM (Flash)	2 GB
Packet buffer size	12.2 MB
Maximum MAC addresses	96,000 (switch image), 32,000 (router image)
Maximum VLANs	4,096
Maximum PVLANs	32
Maximum STP (spanning trees instances)	254
Maximum VEs	512
Maximum routes (in hardware)	IPv4 routes: Up to 128K (shared resource) IPv6 routes: Up to 7K (shared resource) Next Hop Addresses: Up to 16,000 (shared resource)
Trunking	Maximum ports per trunk: 16 Maximum trunk groups: 256×8 or 128×16 per stack
Maximum jumbo frame size	9,216 bytes
Average latency	1.3 µs
QoS Priority Queues	8 per port
Multicast Groups	8,192 (Layer 2) 6,144 (Layer 3)
Compliance/Certification
Electromagnetic emissions	FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1)
Safety	CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems
Immunity	EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags
Environmental regulatory compliance	RoHS-compliant (6 of 6); WEEE-compliant
Vibration	IEC 68-2-36, IEC 68-2-6
Shock and drop	IEC 68-2-27, IEC 68-2-32
