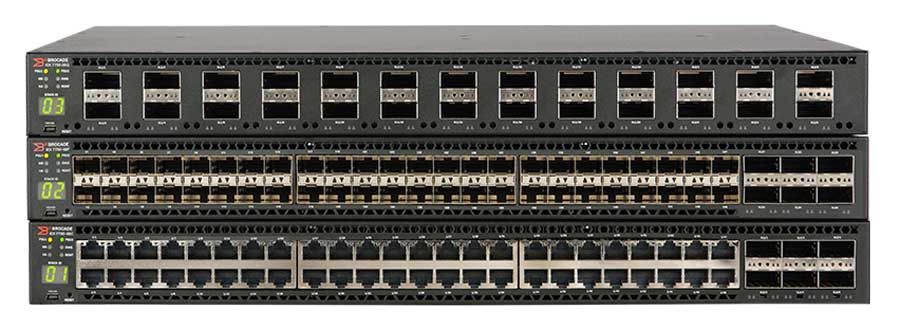

Ruckus ICX 7750-26Q, ICX 7750-48F, ICX 7750-48C Switch
Ruckus ICX 7750-26Q Switch Specifications.
| ICX 7750-26Q | ICX 7750-48F | ICX 7750-48C | |
|---|---|---|---|
| Ports | 26 QSFP+ Ports | 48 SFP+ Ports | 48 10GBASE-T Ports |
| Switching capacity (data rate, full duplex) |
2.56 Tbps | 1.92 Tbps | 1.92 Tbps |
| Forwarding capacity (data rate, full duplex) |
1.90 Bpps | 1.44 Bpps | 1.44 Bpps |
| Fixed ports: 1/10 Gbps SFP/SFP+ | – | 48 | – |
| Fixed ports: 100 Mbps, 1/10 Gbps 10GBASE-T RJ45 | – | – | 48 |
| Fixed ports: 40 Gbps QSFP+ | 26 | 6 | 6 |
| Modular slots | 1 | 1 | 1 |
| Modular ports: 40 Gbps QSFP+ (max.) |
6 | 6 | 6 |
| Latency | 550 ns | 550 ns | 40 Gbps – 40 Gbps: 550 ns 10 Gbps -10 Gbps: 2.9 µs |
| Dynamic packet buffer size | 12.2 MB | 12.2 MB | 12.2 MB |
| Base IPv4/IPv6 Layer 3 routing entitlement (Static Routing, RIP) |
Yes | Yes | Yes |
| Advanced IPv4/v6 Layer 3 routing (OSPF, BGP, PIM, PBR, VRF) |
With Certificate of Entitlement | With Certificate of Entitlement | With Certificate of Entitlement |
| Aggregated stacking bandwidth (data rate, full duplex) |
5.76 Tbps | 5.76 Tbps | 5.76 Tbps |
| Stacking density (maximum switches in a stack) |
12 | 12 | 12 |
| Stacking ports (maximum ports usable for stacking) |
Up to 12×40 GbE QSFP+ per switch | Up to 12×40 GbE QSFP+ per switch | Up to 12×40 GbE QSFP+ per switch |
| Maximum stacking distance (distance between stacked switches) |
10 km | 10 km | 10 km |
| Power | ICX 7750-26Q | ICX 7750-48F | ICX 7750-48C |
| Power inlet (AC) | C14 | C14 | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz DC: 40 to 60 VDC | ||
| Maximum current draw | 586 W | 586 W | 586 W |
| Power supply rated maximum (AC) | 2×500 W | 2×500 W | 2×500 W |
| Power supply rated maximum (DC) | 2×500 W | 2×500 W | 2×500 W |
| Switch power utilization1 (25°C) Typical Maximum |
274 W 350 W |
250 W 327 W |
511 W 586 W |
| Switch heat dissipation1 (25°C) Typical Maximum |
935 BTU/hour 1,194 BTU/hour |
853 BTU/hour 1,116 BTU/hour |
1,744 BTU/hour 2,000 BTU/hour |
| Environment | |||
| Net Weight (with 2 power supplies, 4 fans, optional 6 ports module, no transceivers) |
8.83 kg (19.43 lb) | 9.08 kg (19.98 lb) | 10.17 kg (22.38 lb) |
| Dimensions | 440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U) |
440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U) |
440 mm (17.323 in.) W 431 mm (16.97 in.) D 43.6 mm (1.730 in.) H; (1U) |
| Acoustics (25°C, ISO 7779) | 62 dBA | 62 dBA | 62 dBA |
| MTBF(25°C) | 364,061 hours – ICX 7750-26Q | 353,967 hours | 259,199 hours |
| Temperature | Operating temperature: −5°C to 45°C, 50°C at sea level (0°F to 113°F, 122°F at sea level) Non-operating temperature: −40ºC to 60ºC (−40ºF to 140ºF) |
Operating temperature: 40°C at sea level (0°F to 96°F, 96°F at sea level) Non-operating temperature: −40ºC to 60ºC (−40ºF to 140ºF) |
|
| Humidity | Operating relative humidity: 10% to 90% at 50ºC (122ºF) Non-operating relative humidity: 10% to 90% at 60ºC (140ºF) |
Operating relative humidity: 10% to 90% at 40ºC (104ºF) Non-operating relative humidity: 10% to 90% at 60ºC (140ºF) |
|
| Altitude | Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum |
||
| Specifications | |||
| Connector options |
|
||
| DRAM | 8 GB | ||
| NVRAM (Flash) | 2 GB | ||
| Packet buffer size | 12.2 MB | ||
| Maximum MAC addresses | 96,000 (switch image), 32,000 (router image) | ||
| Maximum VLANs | 4,096 | ||
| Maximum PVLANs | 32 | ||
| Maximum STP (spanning trees instances) |
254 | ||
| Maximum VEs | 512 | ||
| Maximum routes (in hardware) |
|
||
| Trunking |
|
||
| Maximum jumbo frame size | 9,216 bytes | ||
| Average latency | 1.3 µs | ||
| QoS Priority Queues | 8 per port | ||
| Multicast Groups |
|
||
| Compliance/Certification | |||
| Electromagnetic emissions | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) | ||
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems | ||
| Immunity | EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags | ||
| Environmental regulatory compliance | RoHS-compliant (6 of 6); WEEE-compliant | ||
| Vibration | IEC 68-2-36, IEC 68-2-6 | ||
| Shock and drop | IEC 68-2-27, IEC 68-2-32 | ||
